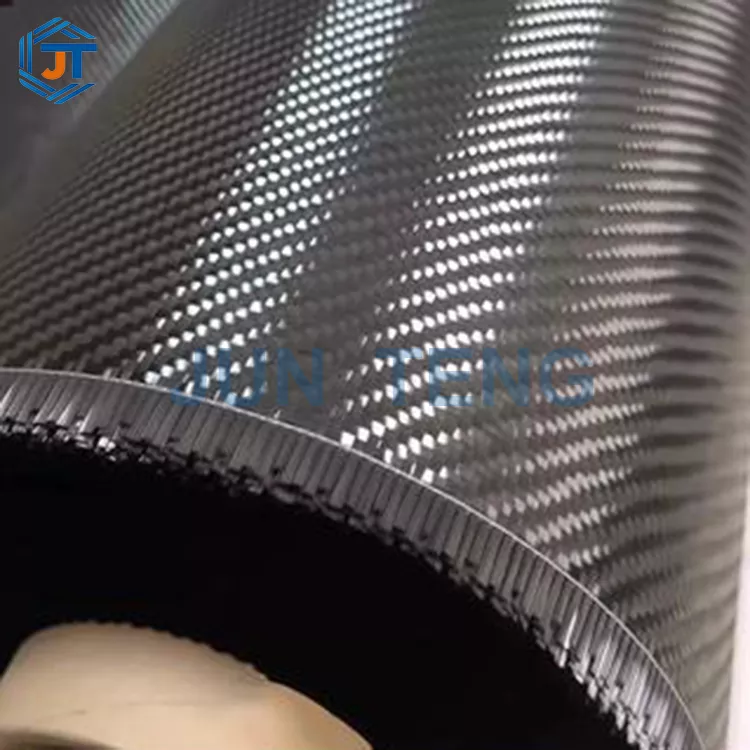

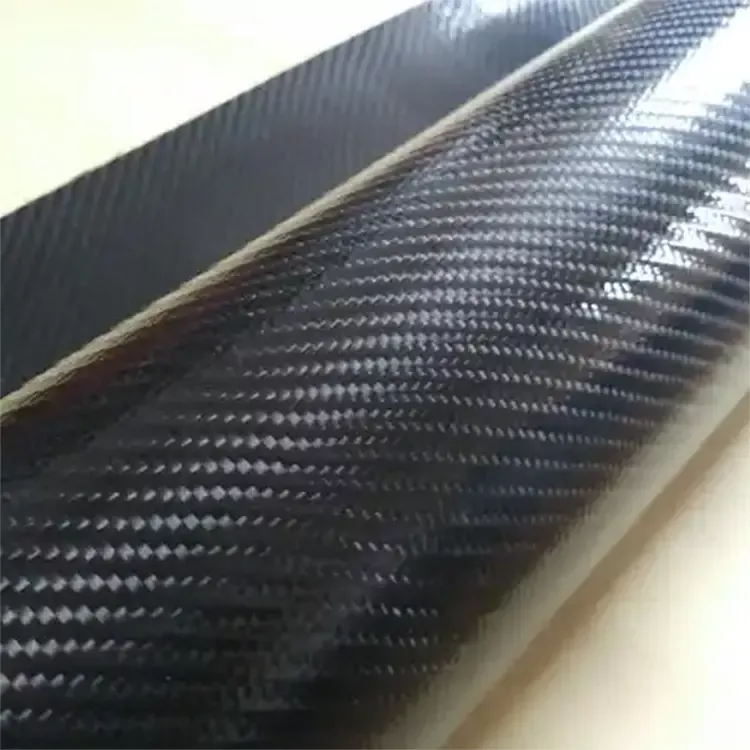

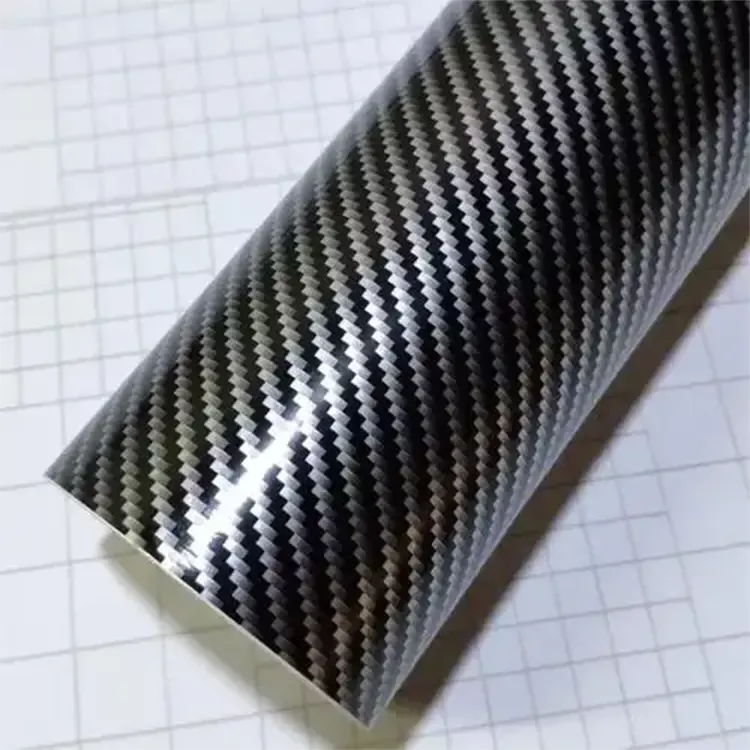

200g Twill Carbon Fiber Woven Fabric

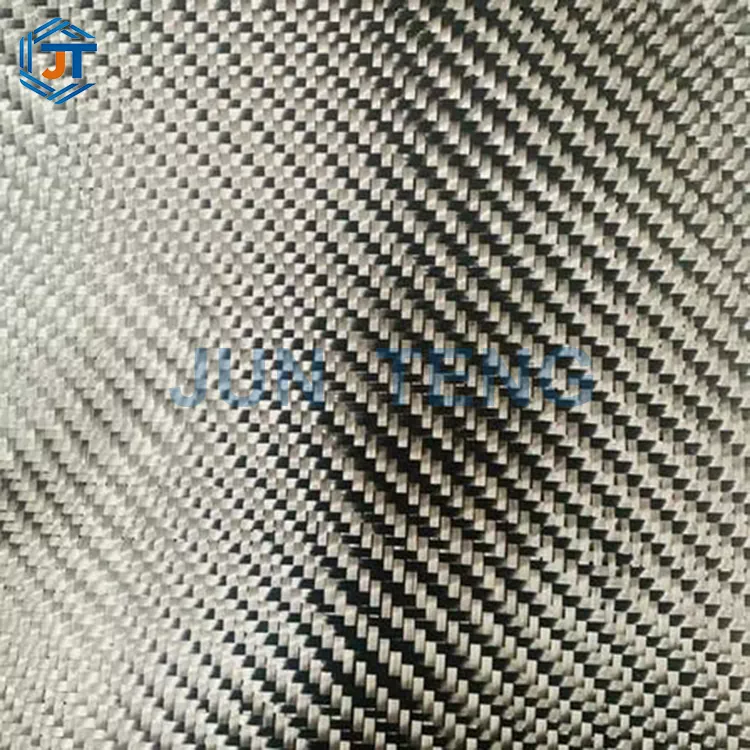

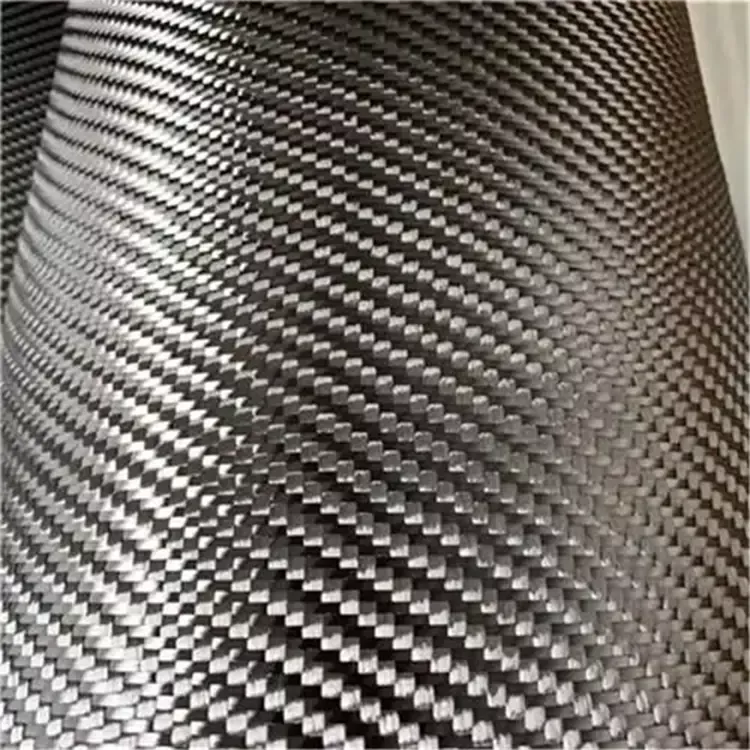

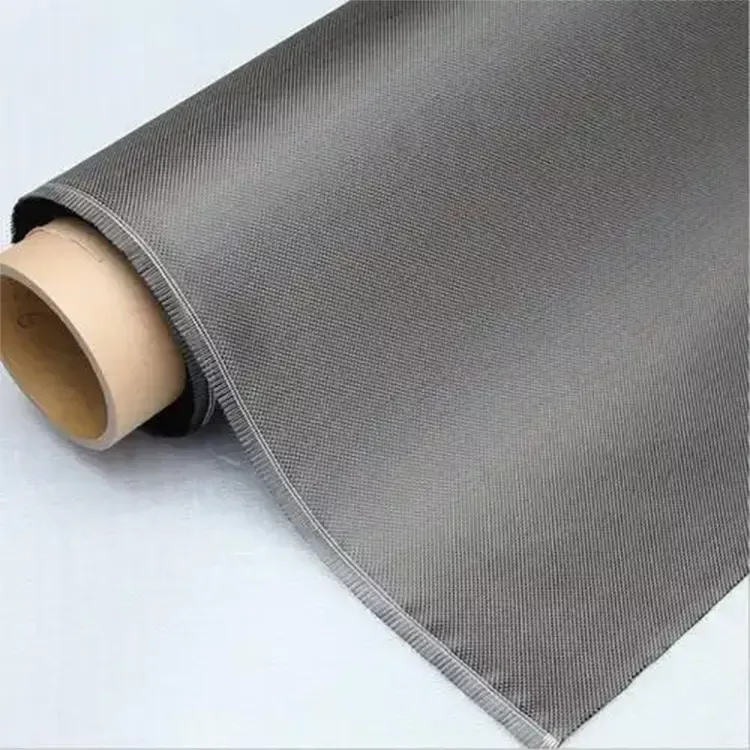

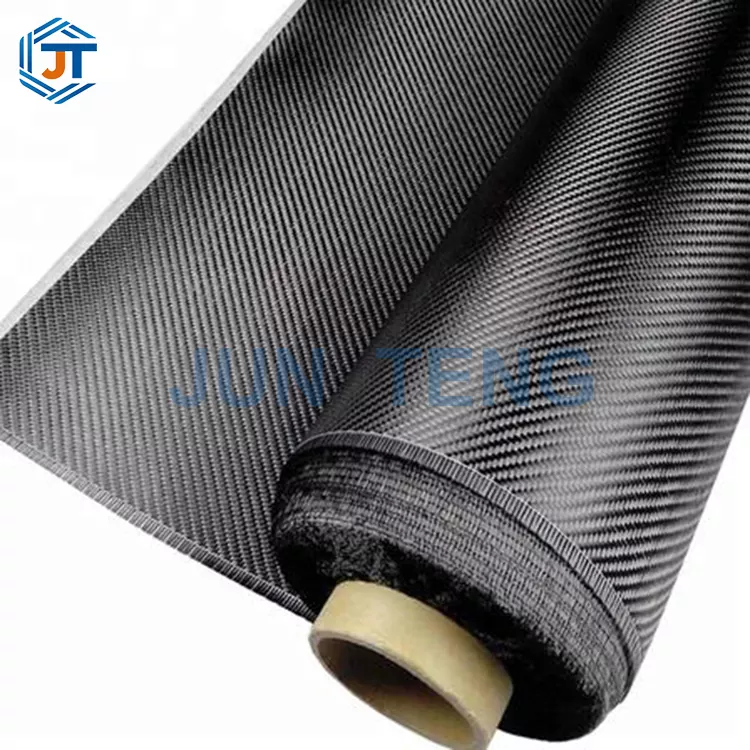

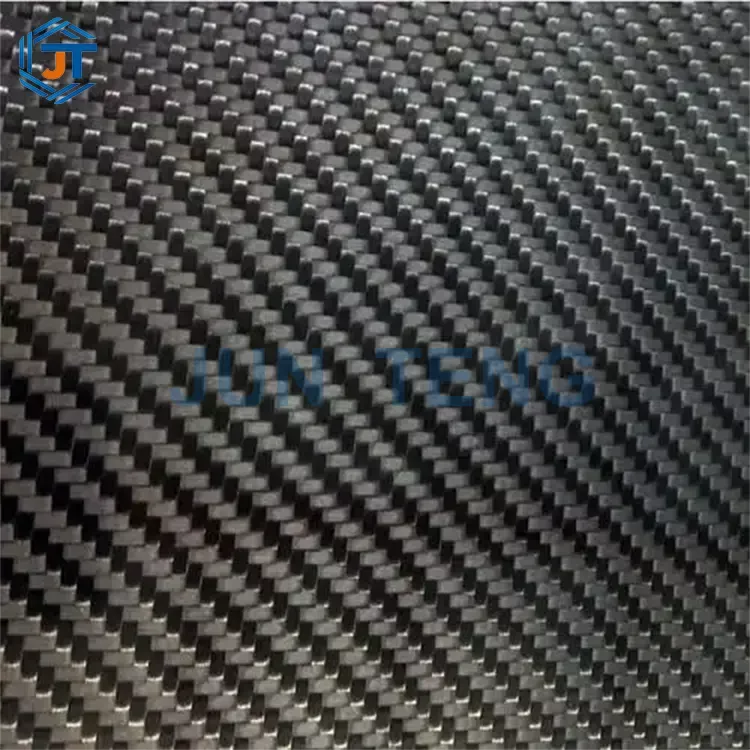

JUN TENG's 200g Twill Carbon Fiber Woven Fabric uses a 2×2 weave structure with fewer interweave points than plain weave, resulting in lower fiber crimp and better drape over curved surfaces. The 200g/㎡ areal weight and 0.22mm thickness balance light weight with structural integrity. Warp and weft tensile strength both exceed 3200MPa, with elastic modulus above 225G Pa. The twill texture provides a distinctive diagonal appearance after curing. Suitable for hand lay-up, vacuum infusion, compression molding, and prepreg processing. Compatible with epoxy and vinyl ester resins. Standard widths: 500mm and 1000mm, with custom slitting available.With one-stop technical support, we are the preferred bi-directional carbon fiber substrate for drone racks, automotive modifications, sports equipment, mold composite shells, and industrial lightweight components.

Core advantages

1. Exclusive advantages of diagonal molding, zero hollowing in surface processing using 2/2 diagonal weaving technology, with fewer carbon fiber interweaving points than plain weave fabric, lower fiber buckling, greatly improved flexibility and drape, and can tightly fit the surface when wrapped with curved or irregular molds, making it less prone to wrinkling, layering, and hollowing, greatly reducing the difficulty of manual layering and vacuum infusion construction. The surface texture of the finished product is coherent and high-end, without the need for additional polishing and decoration of the appearance.

2.200g standard weight, with a lightweight and rigid balanced dry cloth thickness of about 0.22mm, lightweight per unit area, and a weight reduction of 75% compared to steel under the same strength; The bi-directional warp and weft forces are balanced, and the transverse and vertical shear resistance is better than that of unidirectional carbon cloth. It is suitable for shell wrapping, decorative reinforcement, and shaped load-bearing components; Extremely low coefficient of thermal expansion, no deformation and cracking in high and low temperature environments, acid and alkali resistance, corrosion resistance and aging resistance.

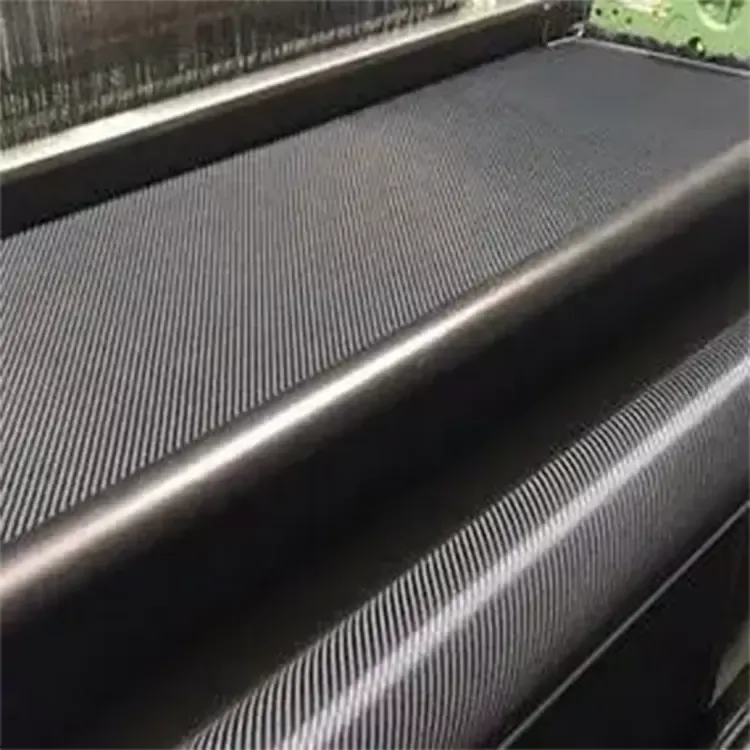

3. JUN TENG original factory quality control, strict control of weight error within±3g, fully automated weaving process for weaving. Each roll undergoes triple testing before leaving the factory: weight calibration, weaving density screening, and full inspection of broken threads and defects to prevent uneven density, jumping threads, and burrs; The raw silk is made of T300 grade industrial carbon fiber, which has stable tensile strength and good resin infiltration. It can be adapted to hand pasting, molding, vacuum flow guiding, and pre soaking processes.

4. Flexible supply mode, dual guarantee of spot goods and customized goods. Regular 500mm/1000mm width, large quantities of spot goods are available all year round. Orders placed on the same day will be shipped out within 48 hours; Support cutting of any width from 10-150cm, customization of whole roll length, and pre soaking processing matching. We can accept small sample orders and bulk foreign trade orders without a minimum order threshold, making procurement flexible and worry free.

Complete Technical Parameter Table

Comparison of measured performance (diagonal vs unidirectional carbon cloth, selection to avoid pitfalls)

Many purchases can easily confuse diagonal carbon cloth with unidirectional carbon cloth for building reinforcement, as their positioning is completely different. The measured data clearly distinguishes their uses:

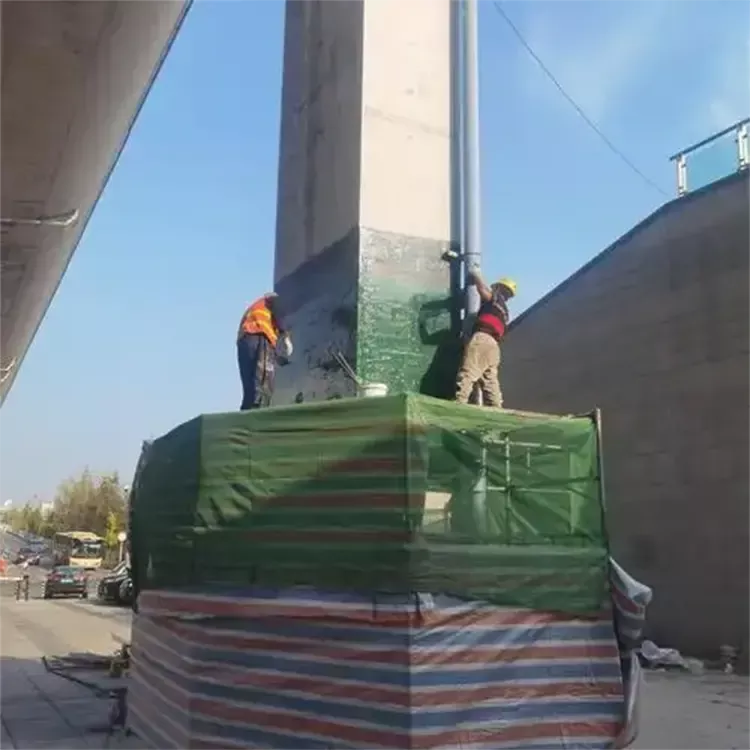

1. Unidirectional 200g carbon cloth: With extremely high tensile strength in one direction and no interwoven or bent fibers, it is only suitable for load-bearing reinforcement of building beams, columns, and bridge main structures; Weak lateral force, poor surface fitting, single appearance texture, not suitable for processing shells and decorative parts.

2. JUN TENG's 200g Twill Carbon Fiber Woven Fabric: Balanced force distribution in both warp and weft directions, stronger shear resistance; Flexible and capable of wrapping complex curved surfaces, with advanced diagonal texture after molding; It is not recommended to use it as the main load-bearing reinforcement material for buildings. It can only be used for surface anti-corrosion and appearance decoration of small components. Industrial composite molding and lightweight shells are the core applicable scenarios.

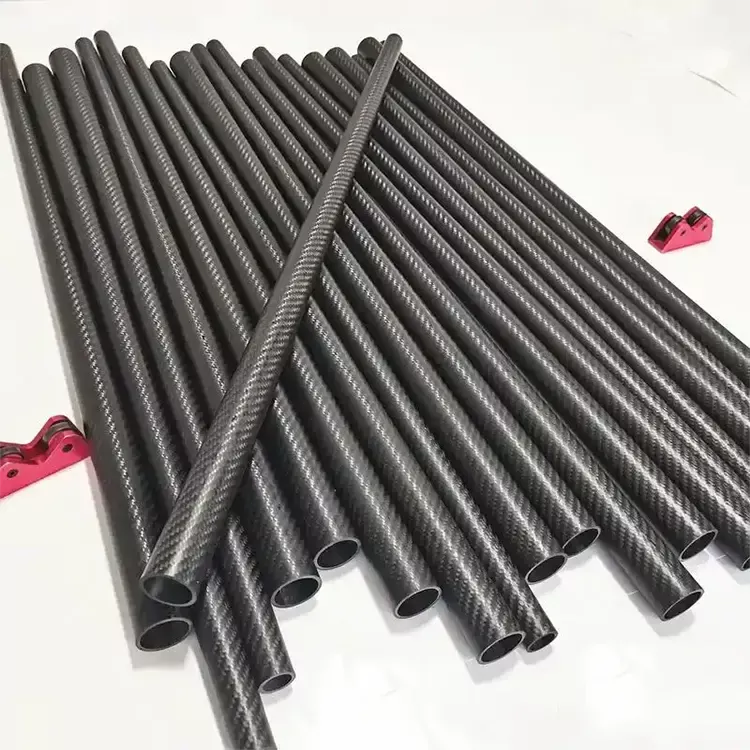

Industry wide application scenarios

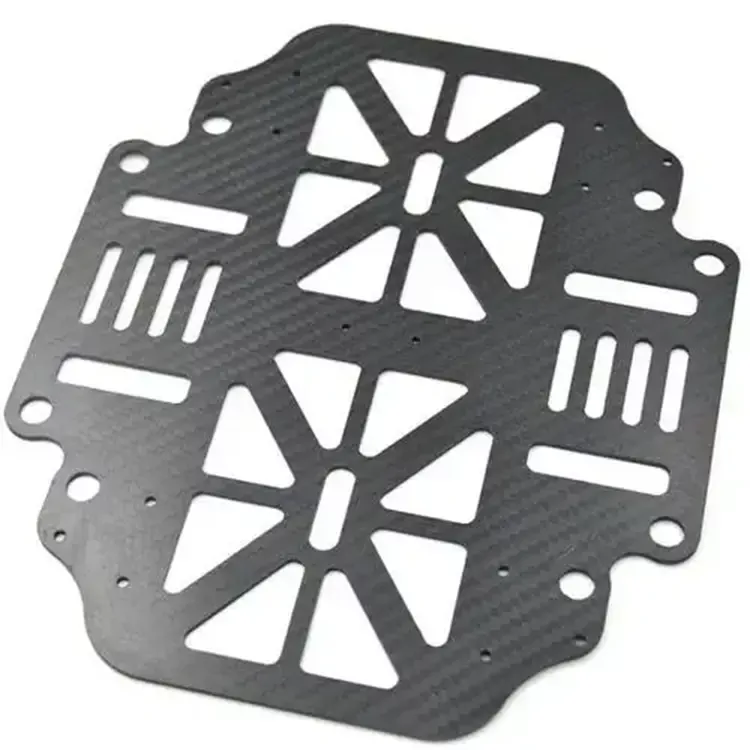

Intelligent device&drone industry: Crossover machine frame, aerial drone shell, gimbal bracket, lightweight arm, weight reduction while improving the impact resistance of the body;

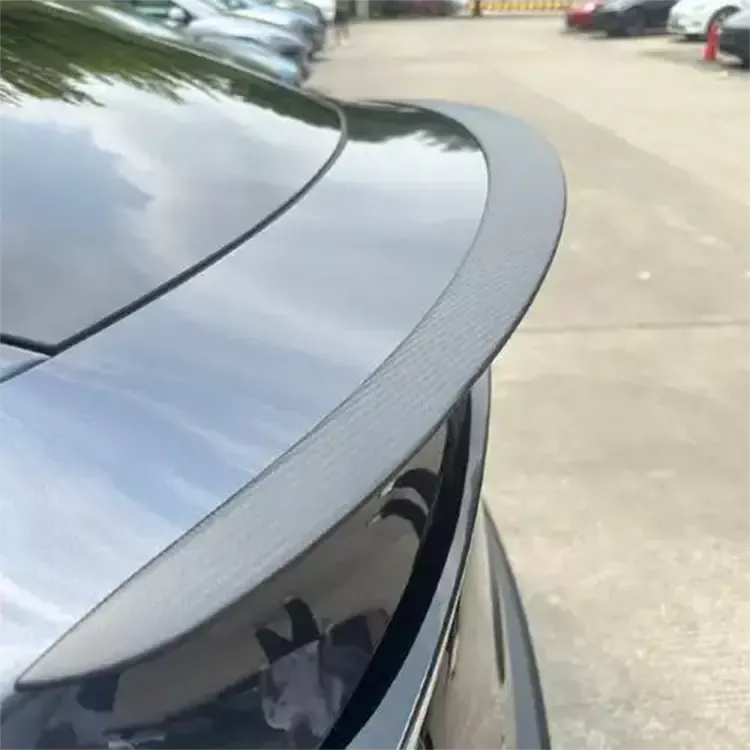

1. Car and motorcycle modification: engine hood, rearview mirror shell, motorcycle cover parts, interior decorative panels, upgrading the original car's lightweighting, and enhancing the product premium with carbon texture;

2. Outdoor sports equipment: high-end rackets, skis, bicycle frames, fishing rod outer covers, protective gear shells;

3. Molds and industrial components: surface layer of curved molds, robotic arms, lightweight brackets for medical devices, precision instrument casings;

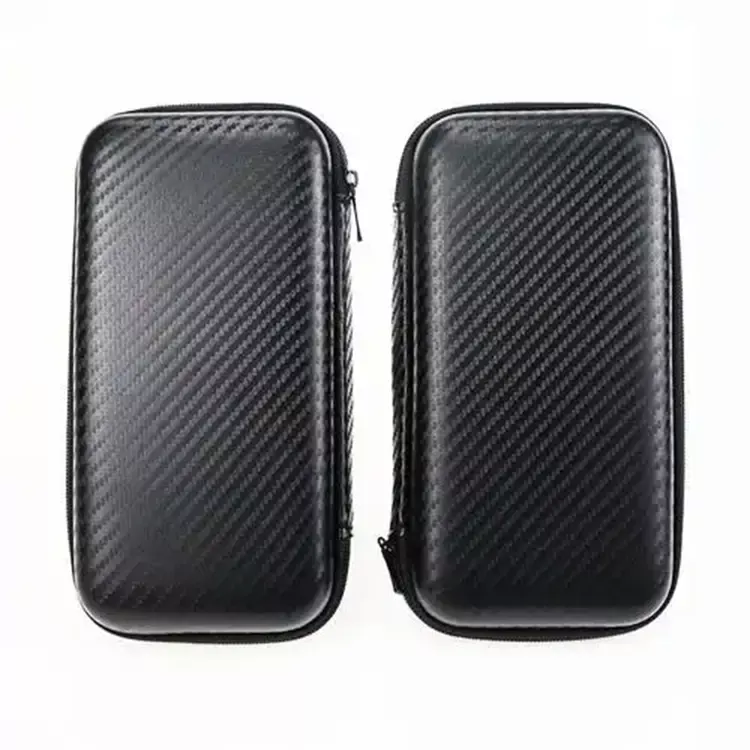

4. Craft decoration composite materials: carbon fiber crafts, model shells, high-end cultural and creative ornaments, and anti-corrosion decoration of equipment surfaces.

JUN TENG Manufacturer Qualification Certification

Our factory has been deeply involved in carbon fiber composite materials for 18 years. We have our own weaving, slitting, and quality inspection workshops, and can provide electronic and paper stamped copies of the full set of qualifications with the goods. They can be used for bidding and customer factory inspections

1. ISO9001 Quality Management System Certification;

2. Third party CMA material mechanics testing report (corresponding testing certificates can be issued for each batch);

3. Qualification for purchasing carbon fiber raw silk from raw material factories;

4. Qualification for high-tech industry registration of enterprises;

5. Product non-toxic and environmentally friendly testing, corrosion and aging resistance testing report.

 After sales guarantee, quality assurance, and full process service explanation

A. Product Quality Assurance Standards

1. Factory original roll unopened: If the weight deviation exceeds the standard, there is a large area of skipping, breakage, or weaving defects found during inspection, unconditional free return and exchange will be provided, and we will bear the round-trip shipping cost;

2. Material performance warranty for 5 years: Under normal dry storage without moisture, the mechanical properties of the fibers will not deteriorate. If the performance does not meet the standards, equivalent products can be reissued free of charge;

3. Human caused moisture, self cutting losses, and improper construction operations are not covered by the warranty. Customer service can provide repair plan guidance.

B. One stop supporting service

1. Sample service: Free 1-3㎡samples are provided, with only a small shipping fee charged. After confirming the performance, bulk orders can be placed;

2. Customized processing: cutting width and length according to demand, pre impregnated carbon fiber cloth OEM, and matching epoxy resin packaging supply;

3. Technical support: Equipped with composite process engineers to provide online answers to practical problems related to layer laying, resin ratio, vacuum forming, and mold bonding;

4. Delivery service: Spot goods can be shipped within 48 hours, customized orders can be produced within 7 working days, and multiple shipping channels including sea freight, air freight, and domestic logistics are supported;

5. Supporting documents: parameter tables, quality inspection reports, and qualification certificates are provided with the goods. For foreign trade orders, English CO certificate of origin and packing list can be provided.

Q&A

Q1: Can this 200g Twill Carbon Fiber Woven Fabric be used for reinforcing the main structures of houses and bridges?

A: It's not possible. The national standard for building load-bearing reinforcement requires the use of unidirectional carbon fiber cloth, twill fabric with interwoven and bent fibers. The unidirectional tensile strength is insufficient and cannot pass the acceptance of the engineering supervisor; This product is only suitable for surface decoration and anti-corrosion modification of small components. For engineering reinforcement, please consult customer service for the corresponding 200g unidirectional carbon cloth product.

Q2: The width of the stock is not enough. Can we customize a 1500mm wide roll? What is the minimum order quantity?

A: Support customization of 10-150cm full width, no mandatory minimum order quantity, can accept orders for small quantities of several meter slitting or hundreds of meter whole rolls, with a customized delivery time of 3-7 days.

Q3: How to store carbon cloth without easily deteriorating or pilling?

A: Sealed original moisture-proof plastic bag+cardboard box storage, placed in a dry and dark warehouse, with environmental humidity controlled within 60%, avoiding direct contact with rainwater and moisture. Use as soon as possible after opening, and reseal the remaining fabric for storage.

Q4: Is there a price advantage for small batch purchases, and what payment methods are supported for foreign trade orders?

A: Standing stock of spot goods, providing tiered pricing for both small sample orders and large-scale foreign trade; Foreign trade supports T/T, L/C, and Western Union payments, and can provide product parameters and customs clearance information in both Chinese and English.

Q5: How to solve the problem of wrinkles in diagonal carbon cloth during construction?

A: The performance of twill fabric in fitting curved surfaces is better than that of plain weave. Before laying, the resin is fully soaked and evenly spread at low speed; Workpieces with larger curvature can be laid in sections, and with the help of vacuum flow guiding technology, wrinkles and hollows can be basically eliminated.

JUNENG adheres to the original factory direct supply mode, saving the price difference of intermediaries. For 18 years, it has focused on the research and development and production of carbon fiber fabrics, and independently controls the entire chain from raw silk weaving to cutting and quality inspection.

200g Twill Carbon Fiber Woven Fabric, as a commonly used bidirectional composite substrate in the market, balances appearance, mechanical properties, and processing convenience. With sufficient stock, flexible customization, and after-sales support, it is a cost-effective and stable purchasing choice for domestic factory processing, cross-border foreign trade supply, and research and development of samples.

 If you need to obtain samples, detailed quotations, and a complete set of qualification documents, you can directly contact online customer service, where engineers provide one-on-one selection and process solutions.
