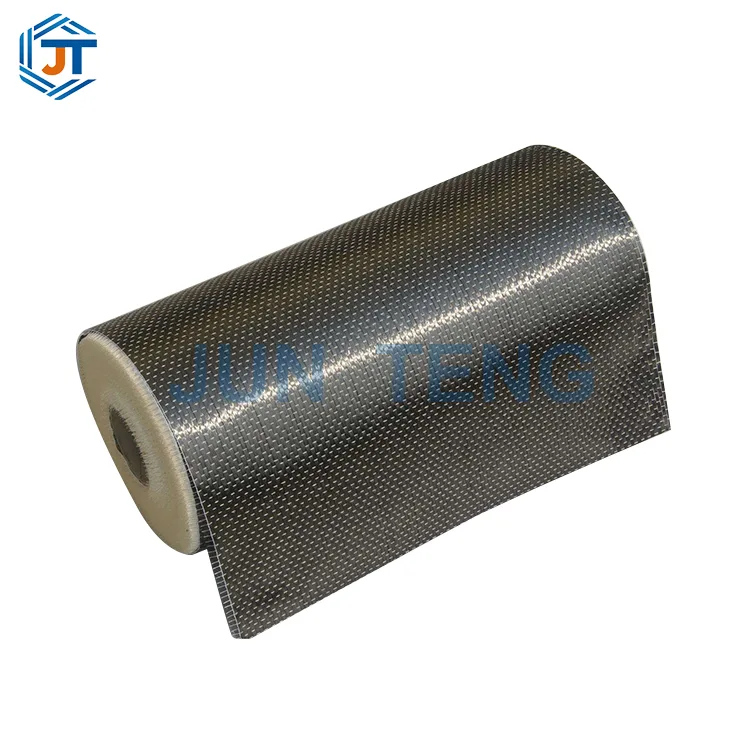

Quality Bidirectional Plain Weave Carbon Fiber Fabric for Strong Lightweight Structures

With 18 years of industry experience, JUN TENG is a reliable supplier of carbon fiber woven fabric. We maintain large stocks of our Bidirectional Plain Weave Carbon Fiber Fabric and offer customization services. Our fabric features balanced strength in both warp and weft directions; the weave is tight and resistant to fraying, and it offers excellent resin impregnation, making it widely suitable for various structural reinforcement projects. As a direct manufacturer, we strictly control quality, support bulk orders, and ensure stable supply to meet the needs of diverse construction projects. We welcome your inquiries!

Comparison Table of Main Specifications

JUN TENG offers a comprehensive range of bidirectional plain weave carbon fiber fabrics, covering standard civil, medium-duty, and heavy-duty reinforcement projects, allowing you to quickly select the right product for specific site conditions:

What are the key differences between bidirectional plain weave carbon fabric, twill weave, and unidirectional carbon fabric?

They differ significantly in terms of load-bearing balance and suitable applications. Unidirectional carbon fabric offers high strength in only one direction, making it suitable only for directional flexural and tensile resistance. Twill weave carbon fabric has a dynamic texture but slightly lower structural stability. In contrast, bidirectional plain weave carbon fiber fabric offers identical strength in both warp and weft directions; its symmetrical structure ensures high stability and excellent resistance to deformation. It withstands both longitudinal tension and transverse stress, making it the ideal solution for issues such as mesh cracking in walls, multi-directional cracks in floor slabs, and uneven stress on curved or irregularly shaped components. It is the most versatile type of carbon fabric for reinforcement.

Is plain weave carbon fabric prone to fraying, fuzzing, or delamination (voids) during installation?

Low-end plain weave fabrics on the market often feature loose weaving and poor edge locking; they fray and fuzz easily after cutting, and are prone to air bubbles and voids after resin impregnation. JUN TENG utilizes a mature, high-density edge-locking plain weave process developed over 18 years. Our fibers are arranged tightly and evenly, resulting in a flat, compact surface. The cut edges remain neat without fuzzing, and resin penetration is uniform and saturated. This ensures a tight bond with the substrate, significantly reducing the risk of voids and delamination, and leading to higher installation success rates.

Is it suitable for curved or irregularly shaped structures?

It offers excellent adaptability. The plain weave structure offers balanced flexibility, combining strength with ductility. Unlike rigid materials that are difficult to apply, it easily conforms to complex, irregular surfaces—such as beam and column corners, curved box girders, arched tunnels, and curved walls—requiring minimal grinding and offering far greater application versatility than standard reinforcement materials.

What are the advantages?

1. Stable performance and high adaptability: The symmetrical plain weave structure resists deformation and creep, ensuring long-term stability. Its mechanical properties fully comply with national reinforcement standards, facilitating successful project testing and final acceptance.

2. Lightweight yet high-strength; adds no load: The material is lightweight and the reinforcement layer extremely thin, yet it far exceeds steel in strength. It adds no significant dead weight or cross-sectional bulk to the structure, making it ideal for lightweight retrofitting of older buildings.

3. Weather-resistant and anti-corrosive; long service life: It offers excellent resistance to aging, acids, alkalis, and salt spray. Unaffected by humidity, high temperatures, or corrosive environments, a single application provides long-term protection, significantly reducing repair costs.

4. Efficient installation; versatile application: Applied at ambient temperatures without heavy machinery, the process is simple and quick. It conforms to irregular surfaces like curves, corners, and tunnels, making it suitable for indoor and outdoor use, as well as retrofitting projects where operations must continue without interruption.

What auxiliary materials are required for installation?

We recommend using the complete, integrated reinforcement system. Standard installation involves a three-step process using primer, leveling adhesive, and impregnating adhesive to ensure substrate penetration, void repair, and thorough carbon fabric saturation, thereby maximizing bond strength and reinforcement effectiveness. Junteng offers one-stop procurement for the entire reinforcement material package.

What is the service life of structures reinforced with plain weave carbon fabric?

It is highly durable and meets long-term structural protection needs. When high-quality plain weave carbon fabric is installed with certified reinforcement adhesives, the cured structure is stable and highly resistant to aging. Under normal conditions, it provides stable protection for decades, eliminating the need for frequent repairs and significantly lowering long-term maintenance costs.

In which engineering scenarios is it primarily used?

1. Civil Building Renovation: Structural reinforcement for aging residential complexes, wall crack repair, floor slab crack-resistance reinforcement, beam and column structural strengthening, and seismic upgrades.

2. Municipal & Transportation Projects: Strengthening of bridge box girders, piers, and decks; tunnel lining repair; culvert structural reinforcement; and remediation of road surface defects.

3. Industrial Facility Projects: Workshop load-bearing capacity upgrades, crane beam reinforcement, post-fire structural component repair, roof structure strengthening, and equipment foundation reinforcement.

4. Specialized & Non-Standard Projects: Reinforcement and repair of curved components, curved walls, arched structures, and specialized equipment (including lightweight strengthening solutions).

About JUN TENG

With 18 years of deep experience in the structural reinforcement materials industry, JUN TENG focuses exclusively on the R&D and production of carbon fiber reinforcement materials. We prioritize quality and meticulous attention to detail, accumulating extensive experience in supporting engineering projects. All our bidirectional plain-weave carbon fiber fabrics are manufactured in-house—guaranteeing no defective, refurbished, or non-standard goods. Every batch comes with complete documentation and meets all testing standards, fully complying with acceptance criteria for public, municipal, and industrial engineering projects. We offer rapid shipping from stock, bulk wholesale, and custom manufacturing. Additionally, our professional technical team provides one-stop services—including product selection guidance, construction troubleshooting, and solution optimization—to ensure the efficient execution and successful acceptance of every reinforcement project.
