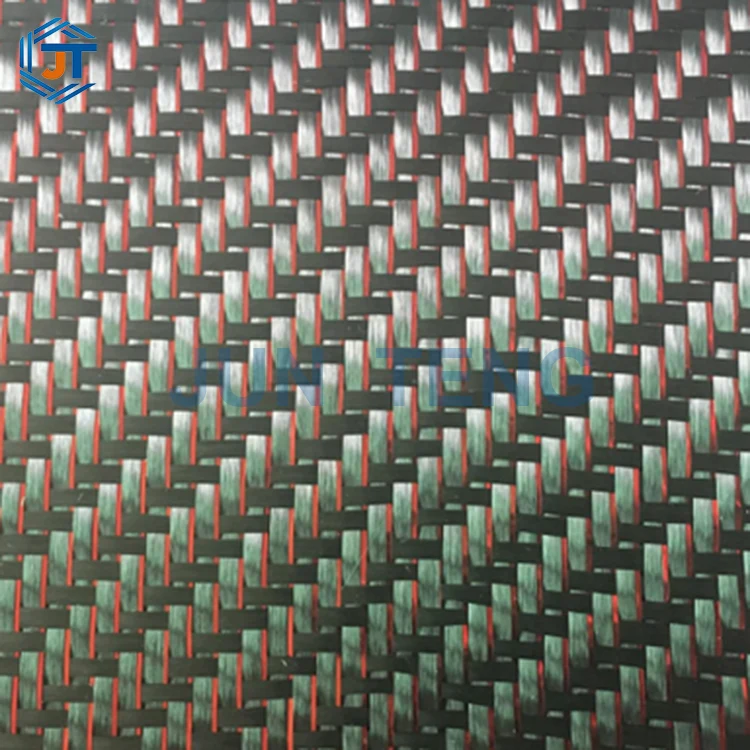

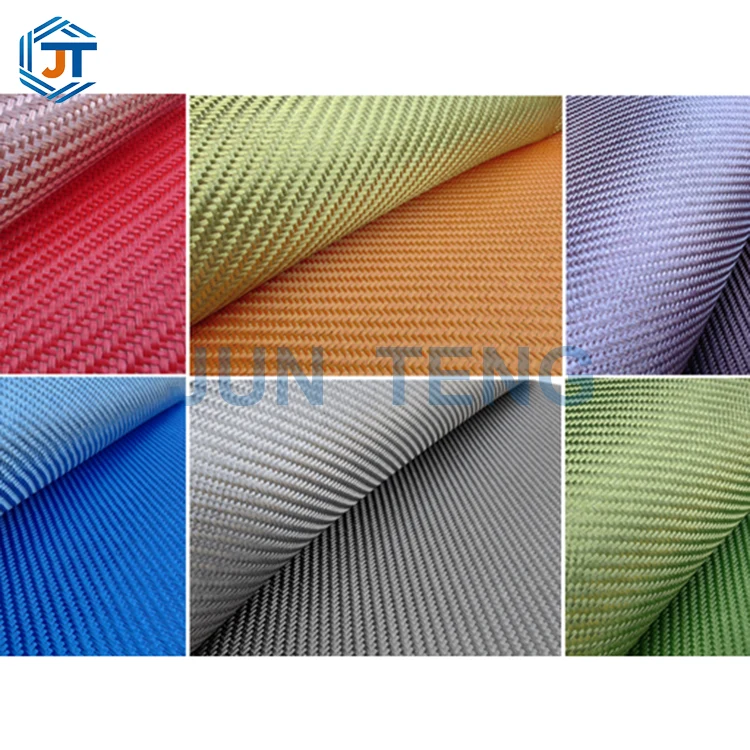

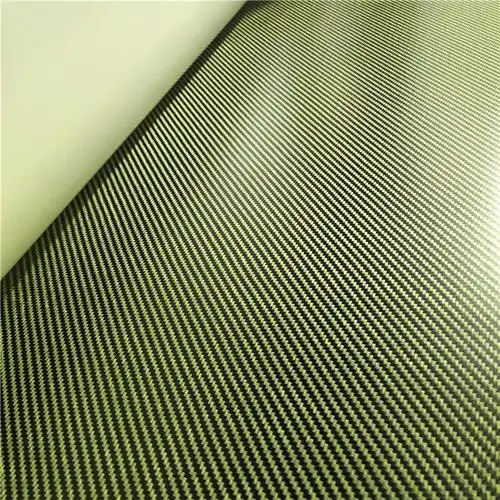

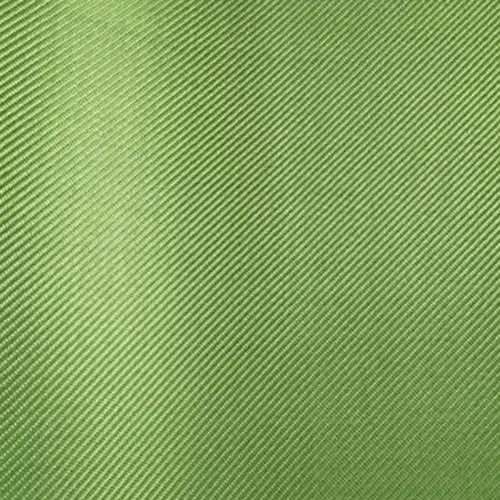

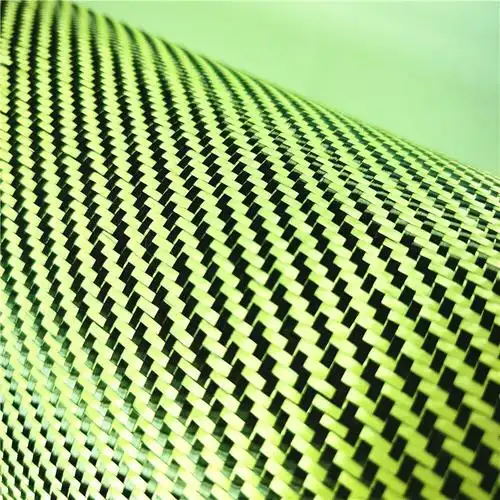

3K Colored Woven Carbon Fiber Fabric

We are one of the few source factories in China that can stably produce 3K Colored Woven Carbon Fiber Fabric without fading. The traditional black carbon cloth has serious homogenization in appearance and cannot meet the differentiated appearance needs of the market. Our factory innovatively adopts a high-temperature resistant coloring chemical fiber and 3K T300 carbon fiber raw silk mixed weaving process to create a variety of contrasting, monochrome, and gradient colored carbon cloth, breaking the inherent black image of carbon fiber.

The raw materials undergo high-temperature color fixing treatment, and after weaving and forming, the colors are full and bright. Resin soaking and high-temperature curing will not cause color bleeding, whitening, or fading; The fabric is tightly woven and flat, with strict control over the wool and breakage rates. It combines the core properties of carbon fiber lightweight, high tensile strength, and corrosion resistance, and has a unique colored weaving texture. Suitable for various molding processes such as hand pasting, vacuum infusion, molding, and pre immersion, widely used in car customization, trendy digital shells, high-end sports equipment, cultural and creative crafts, and model airplane ornaments.

Core Product Technical Parameter Table

Fabric Comparison Table

Third party laboratory measured data

All testing is carried out by a third-party laboratory in collaboration with CNAS. Each batch of fabric comes with a complete testing report, and the data is authentic and verifiable

1. Lightweight testing: With an equivalent weight of only 1/5 for steel and 2/3 for aluminum alloy, the lightweight advantage is fully retained, making it suitable for manufacturing various lightweight appearance parts;

2. Color fastness immersion test: The epoxy resin is continuously soaked for 72 hours, and the fabric has no color bleeding or cross color, with a stable color fastness of level 4 or above;

3. Tensile fatigue test: 200g standard specimen subjected to 5000 cycles of bending without delamination or fiber fracture, with a stable bending strength of 905MPa;

4. Weathering and aging test: After continuous exposure to ultraviolet light for 500 hours, the degree of color fading is less than three times the industry standard, and it remains bright and long-lasting for outdoor use;

5. Batch color difference test: The color differenceΔE of 10 consecutive rolls of the same color series fabric is≤1.2, far superior to the common level ofΔE>5 for colored carbon cloth on the market, and the color of the batch finished products is uniform.

Multi scenario application

1. Colorful carbon cloth covers the steering wheel, center console panel, and wheel hub trim, creating a unique interior style with contrasting textures; 2. Esports case, laptop case, wireless headphone case, colorful carbon pattern enhances the texture of trendy and cool products;

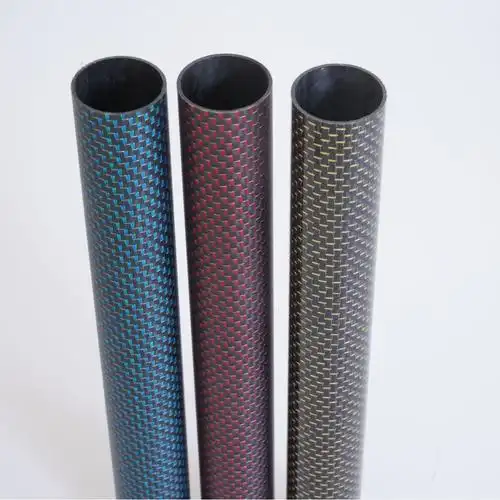

3. Bicycle frame, lure pole, riding helmet, colored appearance to distinguish from homogeneous black equipment on the market;

4. Carbon fiber decorative panels, figurine shells, art sculpture shells, rich colors to meet customized cultural and creative needs;

5. The drone casing and outdoor toolbox decorations are corrosion-resistant and the color remains dark for a long time.

Factory authoritative qualification certification

Junteng is an 18 year carbon fiber weaving source manufacturer, with a full set of qualifications that can provide scanned copies for foreign trade customs clearance, bidding, and customer factory inspection:

1. ISO9001:2015 quality management system certification, standardized control of the entire process of dyeing, weaving, and quality inspection;

2. CNAS mechanical performance testing report, textile color fastness testing report, ROHS environmental protection testing report, in compliance with European and American export standards;

3. Customs self operated import and export filing qualifications, supporting FOB delivery, can provide certificates of origin, factory certificates of conformity, and a complete set of testing materials;

4. Authorization for purchasing 3K carbon fiber raw silk from the original factory, complete qualifications for color yarn suppliers, and full traceability of raw materials throughout the process;

5. A member unit of the Composite Materials Industry Association, possessing a utility model patent for anti-seepage weaving of colored carbon cloth.

The six quality inspection processes before leaving the factory include: raw silk inspection→color yarn fixation sampling inspection→weaving density inspection→screening of fabric and wool defects→color fastness sampling testing→tensile performance testing. Unqualified fabrics are directly scrapped to prevent color difference, fading, and defective products from being shipped out.

After sales guarantee, quality assurance, and full cycle supporting services

1. Original factory warranty policy: Regular stock 3K Colored Woven Carbon Fiber Fabric comes with a 12-month warranty, and can be stored in a sealed, cool, and dry place for stable storage performance; Customized color matching orders can enjoy a 12-month warranty simultaneously;

2. Quality compensation commitment: In case of large-scale color fading, severe color difference, batch breakage of fibers and other factory production problems upon arrival, free replacement of new fabrics or full refund will be provided, and the factory will bear the round-trip logistics costs; Color fading caused by human cutting, high temperature exposure, and improper resin ratio is not within the scope of compensation;

3. Free exclusive technical support: Composite material engineers provide one-on-one explanations of the anti leakage color forming techniques for colored carbon cloth, send a complete set of operation videos for free, and provide real-time online solutions to processing problems;

4. Exclusive follow-up for customized orders: allocate follow-up for customized color and pattern orders, synchronize weaving progress, send samples before production to confirm color effects, and synchronize a complete set of quality inspection reports upon completion of bulk orders;

5. Logistics protection plan: All fabrics are thickened with waterproof wrapping film and packaged in hard paper tubes, with large-scale dedicated logistics. Vacuum moisture-proof and light proof bags are added to export goods to prevent fading under transportation light.

Selection Comparison Table: Colored Carbon Fabric vs. Black Carbon Fabric

Case Study: Seismic Retrofitting of a School Building–Using Colored Carbon Fiber Fabric for Column Identification

A four-story school building located in a seismic zone required seismic retrofitting for its columns. Structural engineers specified carbon fiber wrapping to enhance shear capacity. The school administration requested a visual identifier for the retrofitted columns to facilitate quick identification during future inspections—a distinction that standard black carbon fiber fabric could not provide.

Solution: JUN TENG supplied 3K colored hybrid carbon fiber fabric (200g) along with the corresponding epoxy resin. High-temperature color-fast yarns ensured color stability during the epoxy curing process.

Results: All 36 columns were successfully retrofitted using the colored carbon fiber fabric. Shear capacity increased by 38%, meeting seismic design requirements. The color provided a clear visual indicator for inspectors, making the retrofitted columns instantly recognizable. The school district has now mandated the use of colored carbon fiber fabric for all future seismic retrofit projects requiring visual identification.

Customer Reviews

"Colored carbon has revolutionized our inspection process. With standard black carbon, we had to rely on drawings and manual verification. Now we can walk onto a site and immediately see which columns have been reinforced. JUN TENG's colored carbon holds color through curing and stays visible for years."—Senior Structural Engineer, Engineering Consultancy

FAQ

Q1: Will colored woven carbon cloth fade or bleed during molding?

A: All use high-temperature fixed color special yarn, which has undergone resin immersion color fastness testing. The normal ratio of epoxy and unsaturated resin curing will not cause color bleeding; Special light colors can provide guidance on anti-seepage color processes.

Q2: Can we customize exclusive color schemes and contrasting patterns? What is the minimum order quantity?

A: Support customers to customize two-color and multi-color interwoven styles. There is no minimum order quantity for regular stock, and the minimum order quantity for new exclusive color customization is 80 square meters. Samples can be made first to confirm the color.

Q3: Do you provide free samples? How to deduct the sample fee?

A: 10×10cm multi-color samples are free of charge, and customers only bear the shipping cost; A small amount of fabric fee will be charged for samples larger than 1 meter, and the full amount of sample payment will be deducted for subsequent bulk orders.

Q4: What are the storage conditions and shelf life of the fabric?

A: Store in a cool, dark, and dry warehouse to avoid prolonged exposure to strong light; The original unopened sealed roll has a shelf life of 18 months, and it is recommended to complete the processing within 3 months after opening.

Q5: Will colored carbon cloth be much more expensive than black carbon cloth?

A: Our factory has its own dyeing and mixed weaving production line, eliminating the need for outsourcing dyeing and increasing prices. The price difference is very small for the same specifications, and the cost-effectiveness of bulk procurement is outstanding. The cost is lower than that of purchasing colored carbon cloth from external sources on the market.

Q6: Can we make pre impregnated colored carbon cloth? What is the minimum order quantity?

A: We can process epoxy pre impregnated colored carbon cloth. There is no minimum order threshold for regular stock, and the minimum order size for pre impregnated customized products is 50 square meters. You can confirm the color and adhesion by testing the sample first.

Procurement guidance

JUNTENG has its own complete production line for dyeing, weaving, shaping, and quality inspection, with no middlemen raising prices layer by layer. The 3K Colored Woven Carbon Fiber Fabric regular color series is abundant in stock, and the customized color matching delivery time is stable. Relying on stable and low color difference quality, JUNTENG has gained a large number of long-term repeat customers.

Whether it is bulk procurement by foreign trade wholesalers, long-term support by composite material processing plants, customized appearance of digital car brands, or small-scale sample procurement by cultural and creative studios, all can be directly consulted online. The business manager will send real-time photos of multi-color fabrics, detailed quotations, third-party color fastness testing reports, and finished product cases as soon as possible.

We support scheduling on-site factory inspections and inspecting the entire dyeing and weaving process. We welcome customers from home and abroad to negotiate long-term and stable strategic cooperation.
