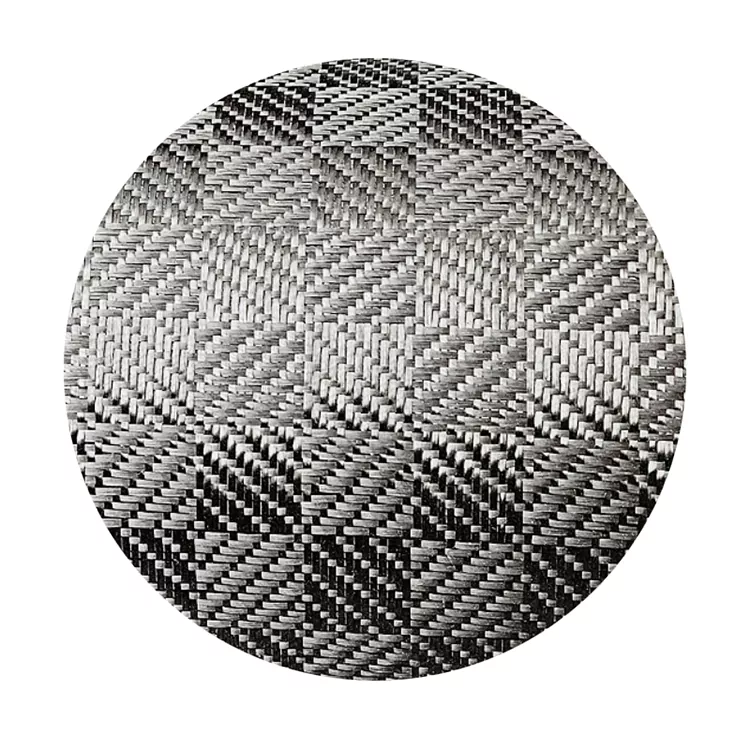

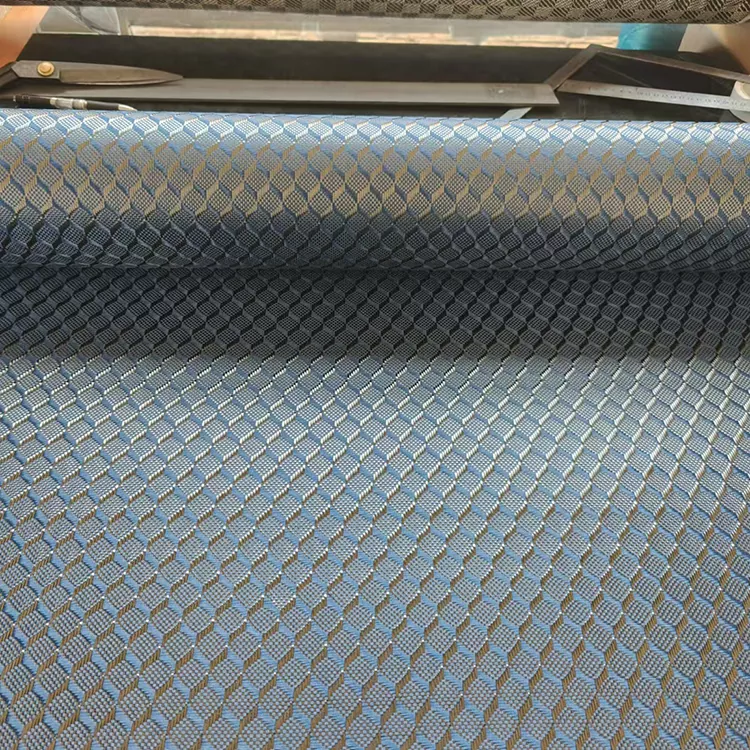

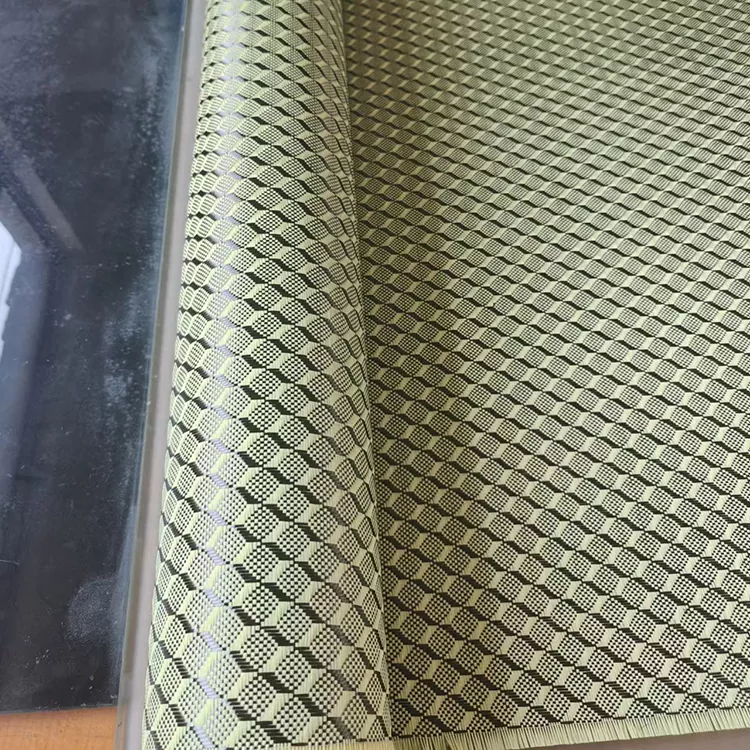

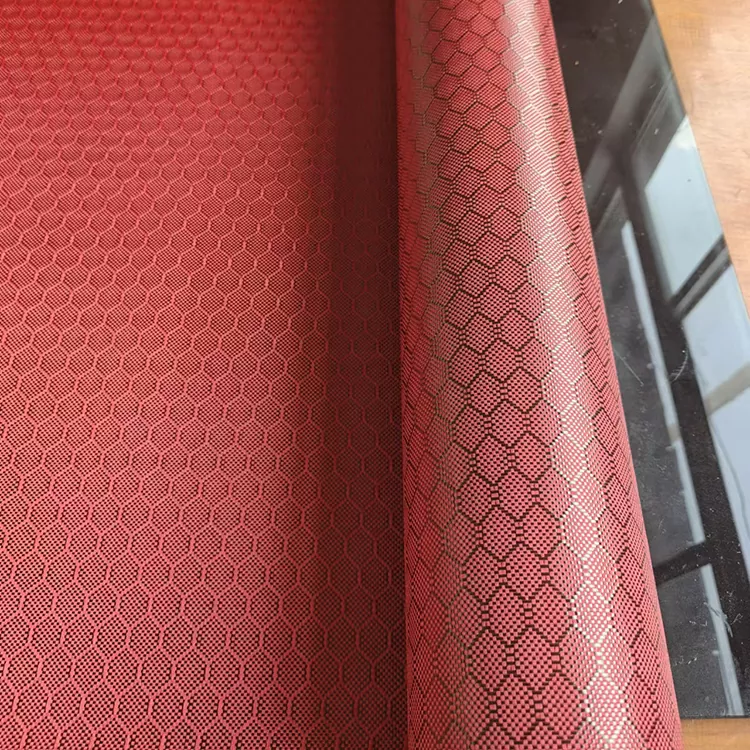

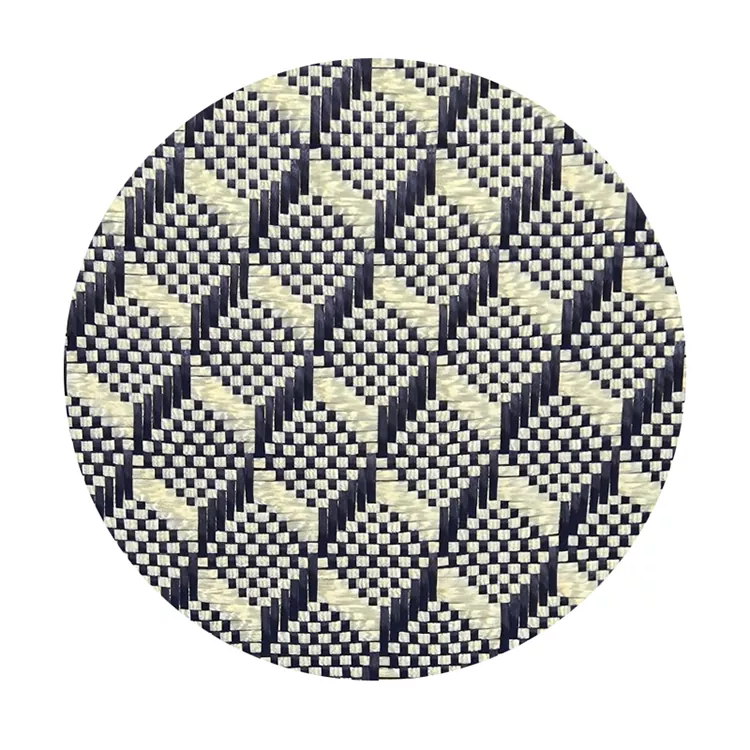

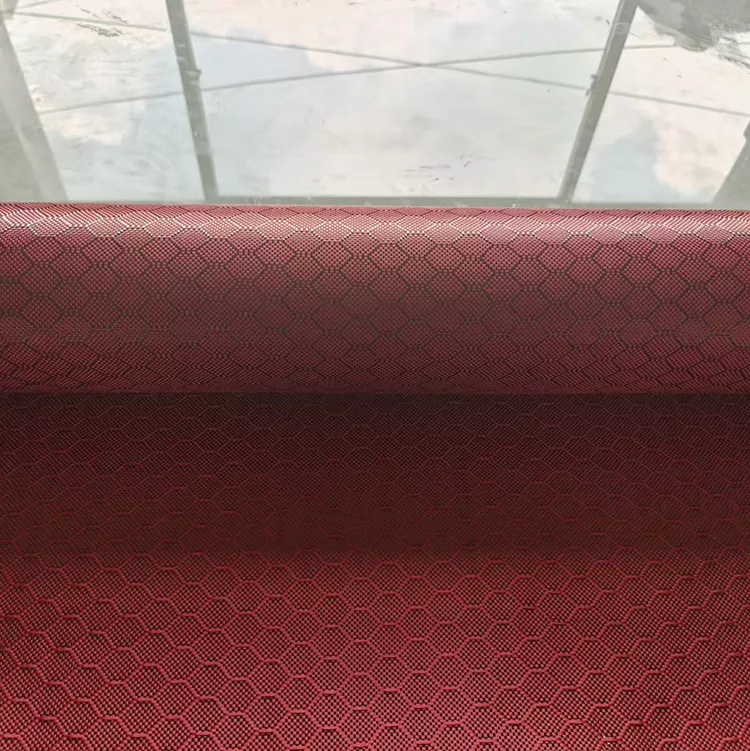

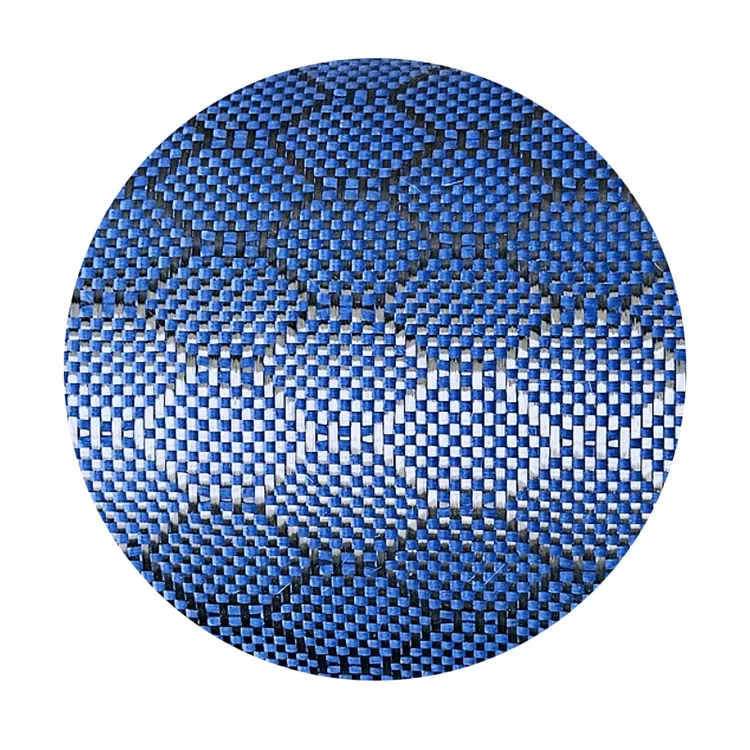

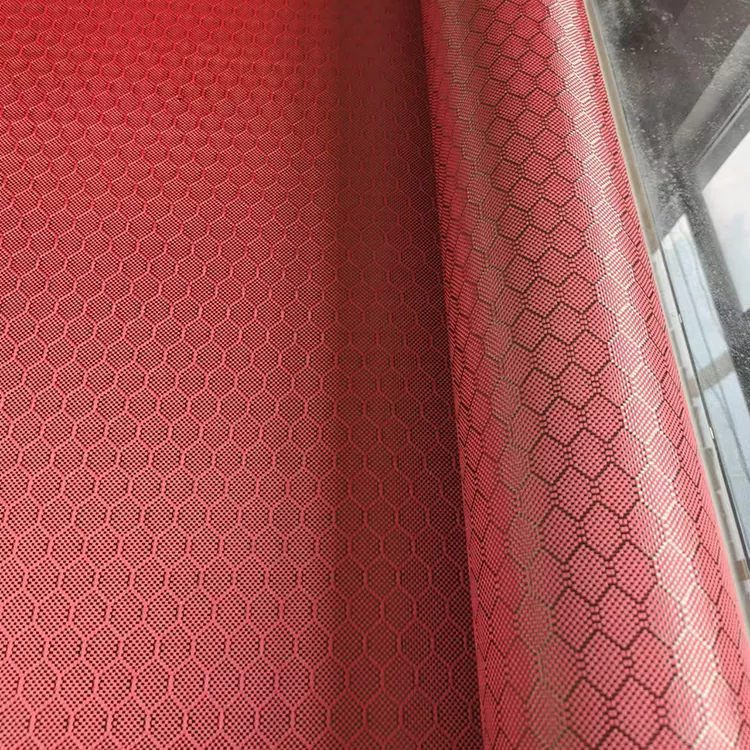

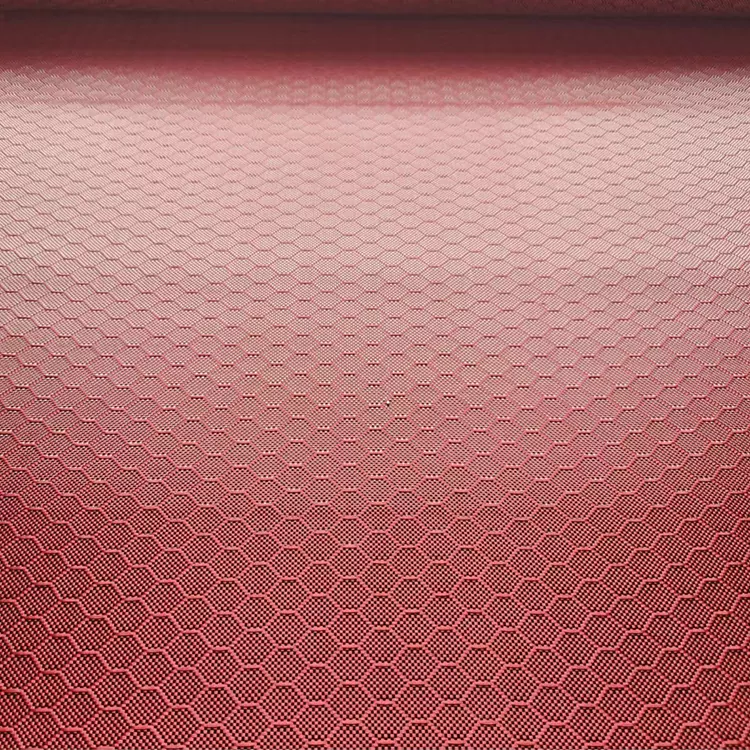

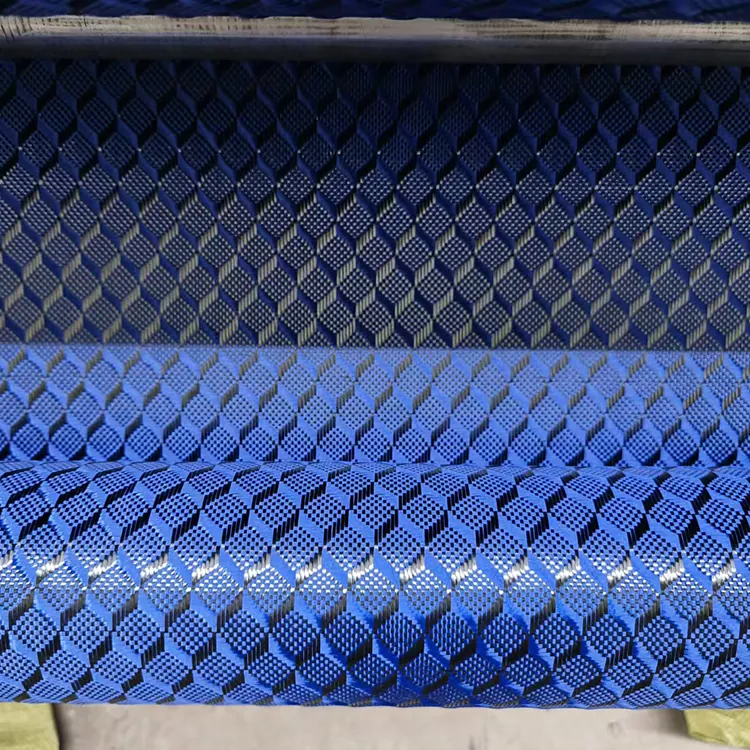

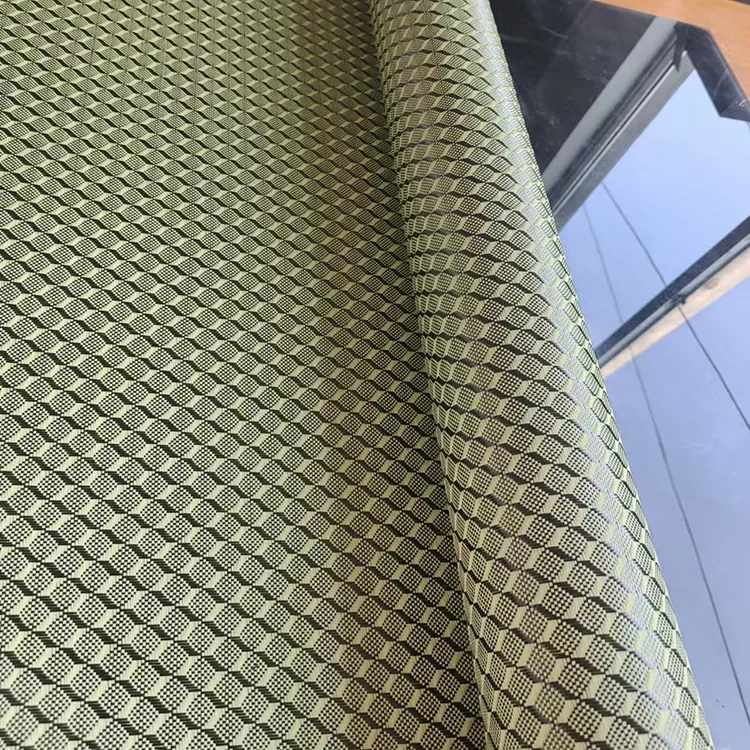

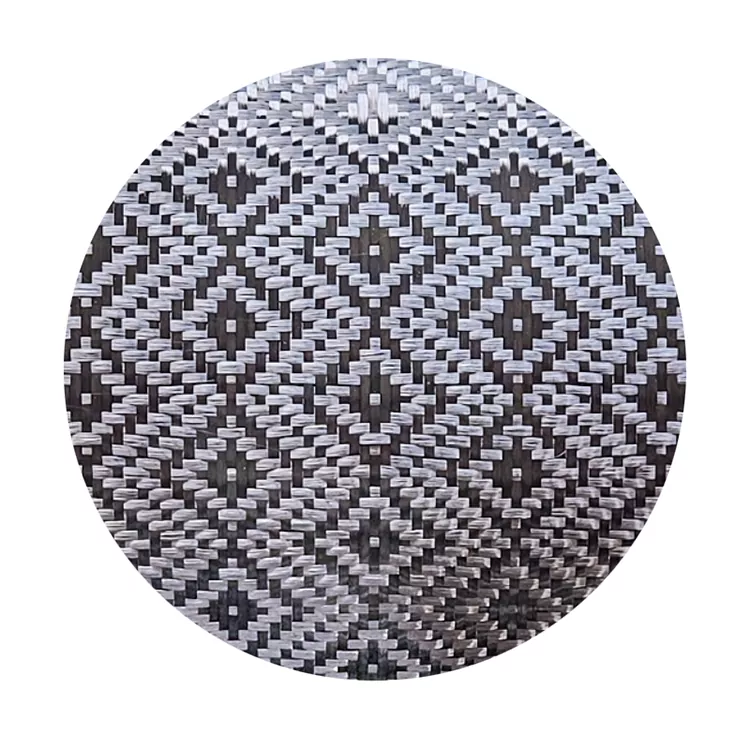

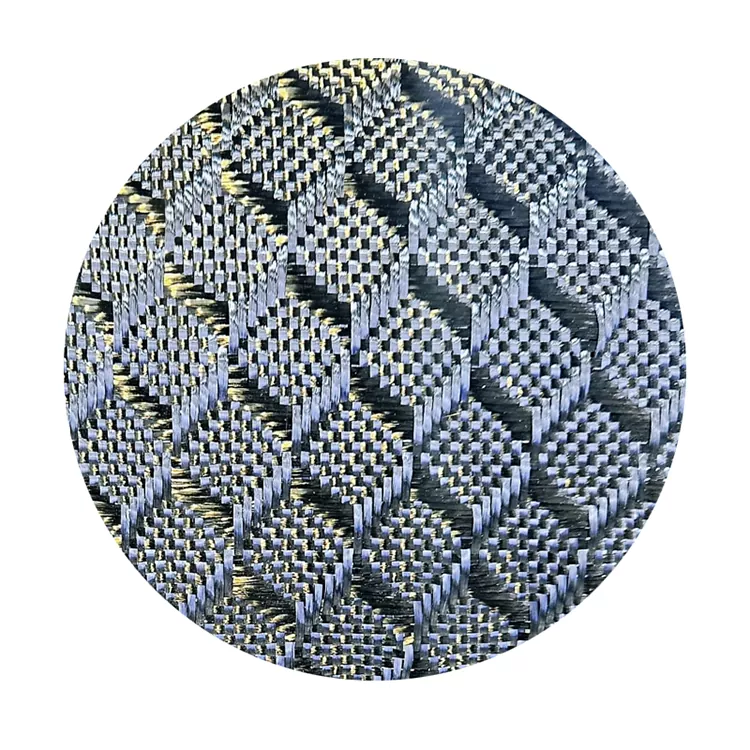

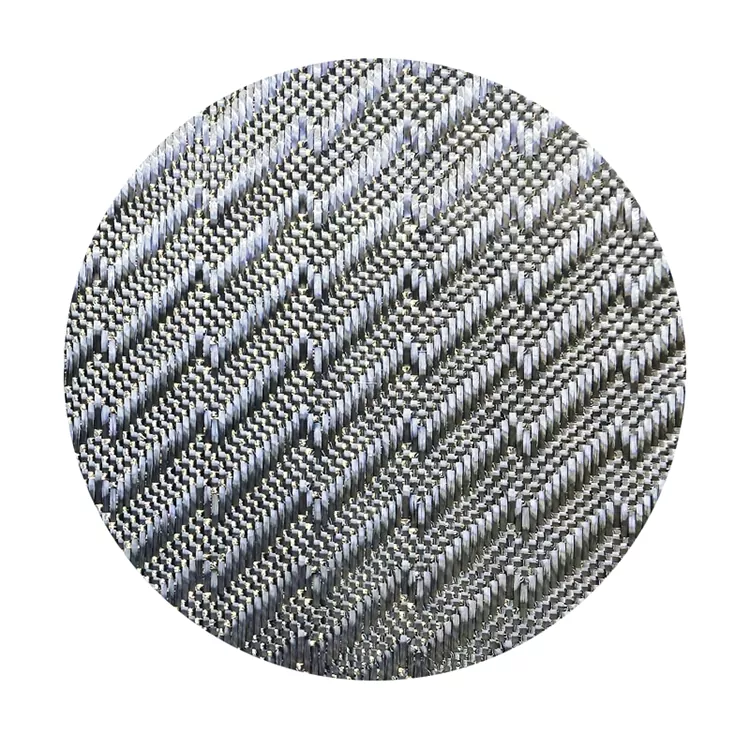

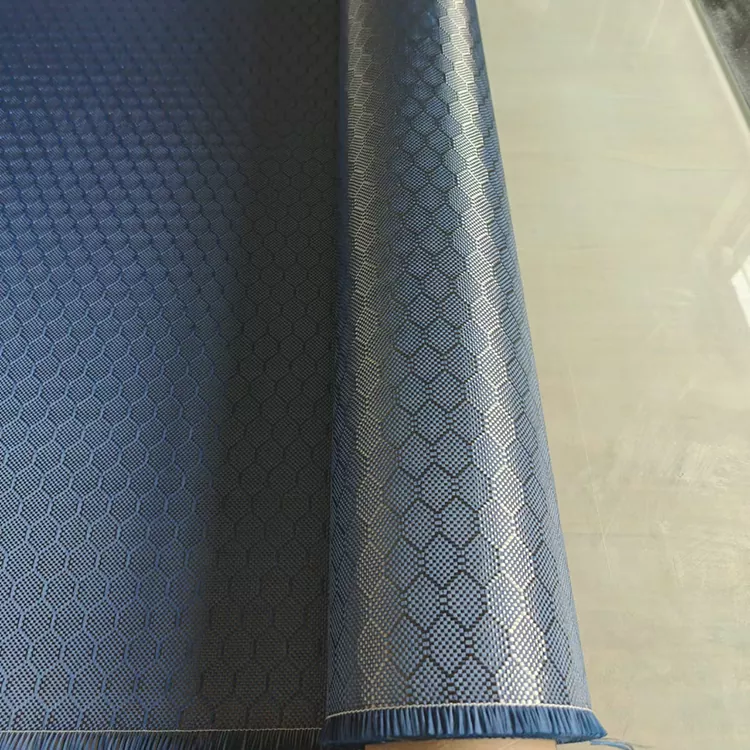

Special Pattern Carbon Fiber Fabric

Special Pattern Carbon Fiber Fabric is made of brand new T300 carbon fiber raw silk combined with self-developed lock yarn weaving technology, with clear and prominent three-dimensional patterns and no floating fibers or fluff on the fabric surface; At the same time, it retains the core properties of carbon fiber, such as high tensile strength, lightweight, acid and alkali resistance, and anti-aging. After resin infiltration and curing, the texture layers are clearly three-dimensional, greatly enhancing the added value of the product. Mainstream conventional patterns are available in stock and can be quickly shipped.

We support ODM pattern customization development and bulk order wholesale, and can provide free sample testing performance. The complete set of third-party testing reports and factory qualifications are complete, with stable quality, and long-term stable supply to major brands and composite material processing plants.

Core Technical Parameter Table

Comparative Table: Special Texture vs Conventional Carbon Cloth

Introduction to Unique Weaving Techniques

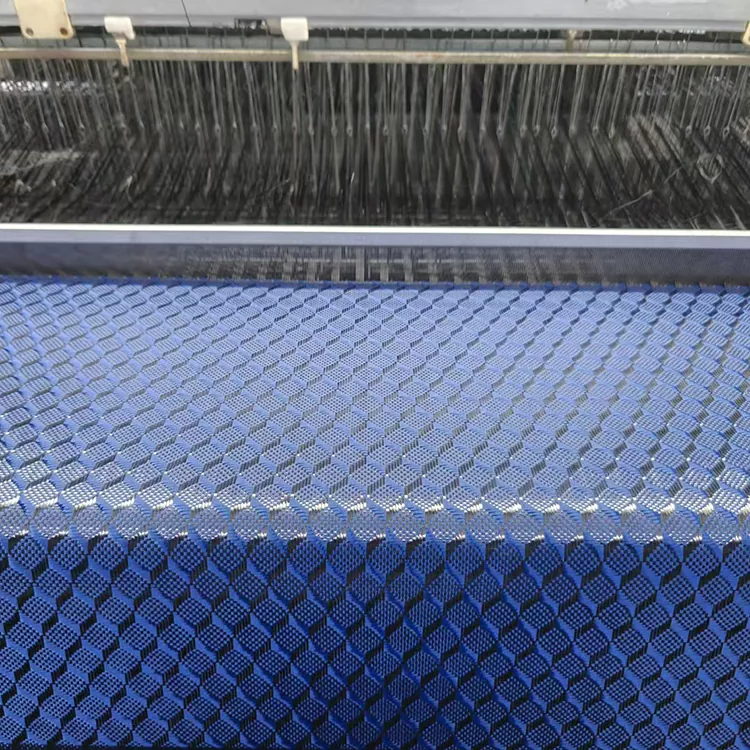

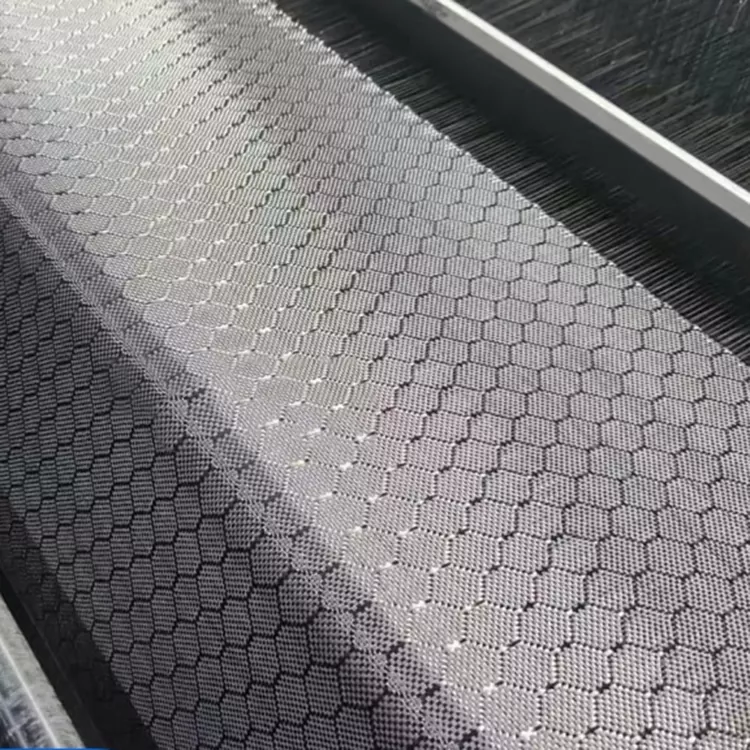

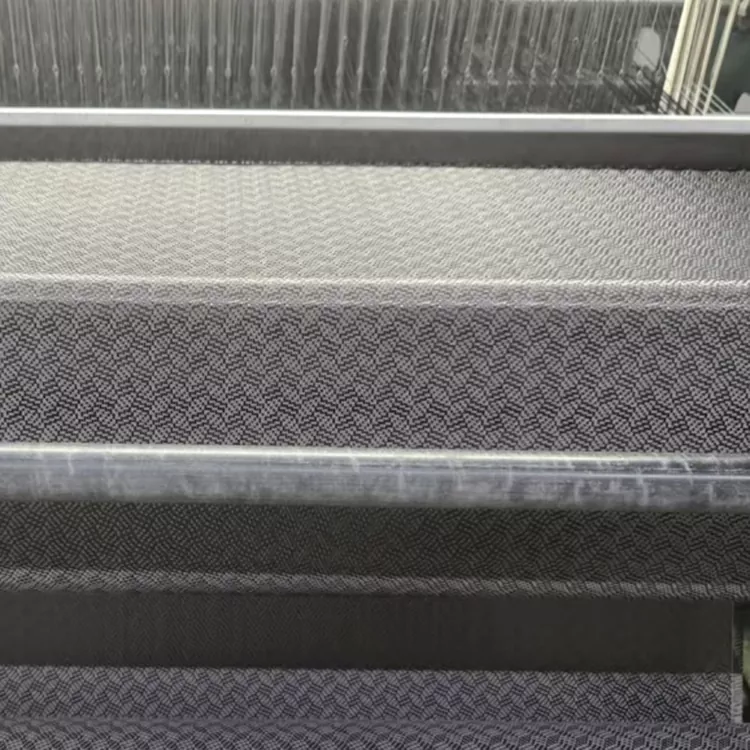

Unlike the commonly used carbon cloth production looms on the market, our Special Pattern Carbon Fiber Fabric is produced using customized high-speed weaving equipment and a three-stage forming process

1. Precise yarn arrangement: Distinguish the tension of warp and weft yarns according to the pattern design, adjust the yarn spacing, reserve molding space for embossed three-dimensional patterns, and avoid the collapse of patterns after resin immersion;

2. Multi point interlocking weaving: Add interwoven nodes at the raised positions of the pattern to enhance the overall integrity of the fabric, and solve the problem of cracking and loose yarn in special pattern fabrics on the market from the root;

3. Low temperature constant tension shaping: adopting a soft shaping process, retaining the three-dimensional texture without flattening the texture, and removing surface floating threads to improve the flatness of the fabric surface.

All production processes are fully controlled by digital equipment, without manual adjustment, ensuring that the depth, spacing, and three-dimensional degree of each roll of fabric pattern are uniform. The entire process does not involve any post-treatment processes such as coating or printing, resulting in a unique texture formed by pure physical weaving. It is safe and environmentally friendly, and its mechanical properties are completely on par with brand new carbon fiber raw silk.

Core advantages of the product

1. Differentiated pattern matrix: Multiple mature special patterns are readily available in stock, supporting independent ODM pattern development to help customers establish unique product appearance barriers.

2. Balancing three-dimensional patterns and mechanical properties: The three-dimensional weaving structure does not reduce tensile strength, and can be used as both decorative appearance parts and lightweight load-bearing structural parts.

3. The processing loss of the lock wire structure is extremely low: there is less wire loss during the cutting process, reducing manual trimming and waste loss in the workshop.

4. Batch pattern stability without deviation: Digitally locked weaving parameters, uniform pattern for large and small orders, suitable for long-term stable matching of brands.

5. The threshold for factory direct procurement is flexible: there is no minimum order quantity for conventional patterns, supporting small batch sampling and large batch wholesale, and free sample testing is available.

Application scenarios and purposes

1. Personalized modification of automobiles: steering wheel, central control panel, shift cover, interior decorative strips; The three-dimensional pattern highlights the sporty personality, distinguishing it from the monotonous black carbon fiber interior.

2. E-sports trendy digital products: chassis, laptop case, headphone case, controller panel; The unique pattern enhances the high-end positioning and market differentiation of the product.

3. High end sports equipment: bicycle frame decoration, fishing rod surface, helmet shell; Unique lightweight design, suitable for limited edition product design.

4. Cultural and creative crafts and model ornaments: drone/model airplane shells, carbon fiber decorative panels, art sculpture shells; The three-dimensional pattern greatly enhances the texture of craft gifts.

5. Precision industrial appearance parts: medical equipment decorative cover plate, automatic instrument panel, high-end equipment nameplate trim plate, corrosion resistance and aging resistance, high visual recognition.

Instructions for use and processing precautions

Instructions for Use

Special Pattern Carbon Fiber Fabric comes with a textured layer of concave and convex layers. For hand lay up construction, it is recommended to apply thin adhesive multiple times to ensure that the gaps in the bottom layer of the pattern are fully soaked; Vacuum infusion should control the appropriate glue extraction speed to avoid excessive negative pressure flattening the three-dimensional patterns; The curing temperature for compression molding is controlled at 80-120℃, and gentle curing can fully preserve the three-dimensional texture.

Precautions

1. Do not apply too thick resin, as the adhesive layer will fill the gaps in the patterns and lose the three-dimensional visual effect;

2. Paste decorative paper on the edge of the cutting edge to reduce the floating threads generated during cutting;

3. Store the fabric in a sealed, dark, and dry manner to avoid long-term compression that may cause wrinkles to collapse;

4. The construction environment should be kept dust-free, and the dust adhering to the patterns and gaps is difficult to clean after solidification, which affects the appearance of the finished product.

Customer core concerns and targeted solutions

Concerns 1: Carbon cloth with special patterns on the market has shallow patterns, which can easily flatten the resin after curing and lose its three-dimensional effect

Solution: Our factory has independently developed multi-point interlocking weaving technology, reserved sufficient space for pattern forming, combined with low tenderness and shaping. After high-temperature curing, the patterns still have distinct layers, fundamentally solving the problem of pattern collapse.

Concern 2: Different batches of special patterned fabrics have varying depths of patterns, which cannot meet the brand's mass production standards

Solution: A complete set of digital weaving parameter locking system, with unified raw silk tension, loom speed, and weaving nodes for each batch, and third-party visual inspection for consistent patterns without batch differences.

Concerns 3: Long development cycle for customized special patterns, high minimum order quantity for small batch samples

Solution: Our own weaving machine mold renovation workshop has a short development cycle for new patterns; Spot patterns support small batch sampling, and the minimum order quantity for ODM customized patterns is lower than the industry average.

Concern 4: Carbon cloth with special patterns has poor strength and is prone to cracking along the gaps in the patterns

Solution: Add interlocking weaving nodes at the concave convex joints of the pattern, use new 3K/6K carbon fiber without recycled material, and achieve tensile strength equivalent to standard structural carbon cloth level. Normal bending will not crack.

Authoritative qualifications and certifications

Junteng has 18 years of experience in carbon fiber weaving factory production, with a complete set of formal documents that can be used for foreign trade customs clearance, project bidding, and customer factory inspection:

1. ISO9001:2015 quality management system certification, standardized quality control throughout the entire process of special pattern production line;

2. RoHS environmental testing certification, no harmful substances, in compliance with European and American export standards;

3. CNAS recognizes third-party testing reports, including tensile strength, weather resistance, and weaving stability testing;

4. Self operated import and export filing qualifications, which can provide certificates of origin, factory certificates of conformity, and a complete set of customs clearance documents;

5. A utility model patent for three-dimensional special pattern carbon fiber weaving, leading the industry in differentiated weaving technology.

The factory has five quality inspection processes: raw silk incoming inspection→weaving parameter review→pattern depth sampling inspection→full inspection of floating silk defects on the fabric surface→tensile performance sampling testing, strictly preventing the outflow of defective products.

Frequently Asked Questions

Q1: Will the three-dimensional patterns disappear after the resin curing of carbon fiber cloth with special patterns?

A: I won't. Exclusive interlocking weaving structure forms stable concave convex layers, combined with low-temperature shaping technology, the patterns will not collapse or flatten under standard curing temperature, and the three-dimensional sense is long-lasting and stable.

Q2: Can we customize exclusive patterns, logo patterns, and irregular geometric textures? What is the minimum order quantity?

A: Support ODM pattern customization and development. There is no minimum order quantity for regular stock patterns, but for brand exclusive customized patterns, the minimum area is 60 square meters. Samples can be taken first to confirm the pattern effect.

Q3: Do you provide free samples to confirm the texture effect?

A: 10 × 10cm mixed pattern samples are free of charge, and customers only bear the shipping cost; The cost of cutting large-sized samples with complete patterns can be fully deducted from subsequent bulk orders.

Q4: How long is the delivery time for bulk orders of special patterned carbon cloth?

A: Regular spot patterns will be shipped within 3-5 working days; New custom pattern orders are scheduled for production within 7-10 working days, with stable and controllable delivery times.

Q5: Is the strength of special patterned carbon cloth worse than that of ordinary twill carbon cloth?

A: The tensile strength is basically the same as conventional carbon cloth, and multi-layer interlocking weaving enhances the overall integrity of the fabric, which can be used for structural load-bearing components without worrying about insufficient strength.

Transaction guarantee and complete after-sales service system

1. Original factory 12-month quality assurance: All Special Pattern Carbon Fiber Fabric comes with a 12-month warranty for stable texture and mechanical properties under sealed, cool, and dark storage conditions.

2. Factory quality compensation mechanism: If there are any factory production problems such as pattern deformation, severe batch color difference, large-scale wire breakage, or fabric damage after receiving the goods, the factory will provide free replacement of new fabrics or a full refund, and the round-trip logistics costs will be borne by the factory; Damage caused by human cutting, improper storage, or construction errors is not within the scope of compensation.

3. Exclusive custom pattern technical support: Composite material professional engineers provide one-on-one molding guidance for different pattern structures, solving problems such as pattern collapse and bubbles during construction, and reducing customer trial and error costs.

4. Customized order exclusive tracking: All ODM pattern customized orders are assigned exclusive tracking, synchronized with the production progress of the weaving machine, samples are sent before production, and a complete set of quality inspection reports are synchronized with the completion of bulk orders.

5. Shockproof and light resistant logistics packaging: All fabrics are wrapped with thickened waterproof film and hard paper tubes to prevent transportation compression and collapse of patterns; Additional vacuum light shielding bags are installed for dual protection of exported goods.

Procurement guidance

JUNTENG's Special Pattern Carbon Fiber Fabric relies on independent three-dimensional weaving technology, stable and uniform patterns, and reliable mechanical properties to break the homogenization dilemma of traditional carbon fabrics. As a source factory integrating research and development, weaving, and quality inspection, we have abundant stock of mainstream special patterns, flexible ODM customization services, low sample thresholds, and complete after-sales support. Whether it is foreign trade wholesalers, composite material processing factories, digital car modification brands, or small handmade cultural and creative studios, they can directly consult and request samples, quotations, and long-term strategic cooperation plans online. The business specialist will send fabric photos, complete testing reports, and finished product cases as soon as possible, support appointment for on-site factory inspection, and observe the entire process of special pattern weaving and laboratory testing.
