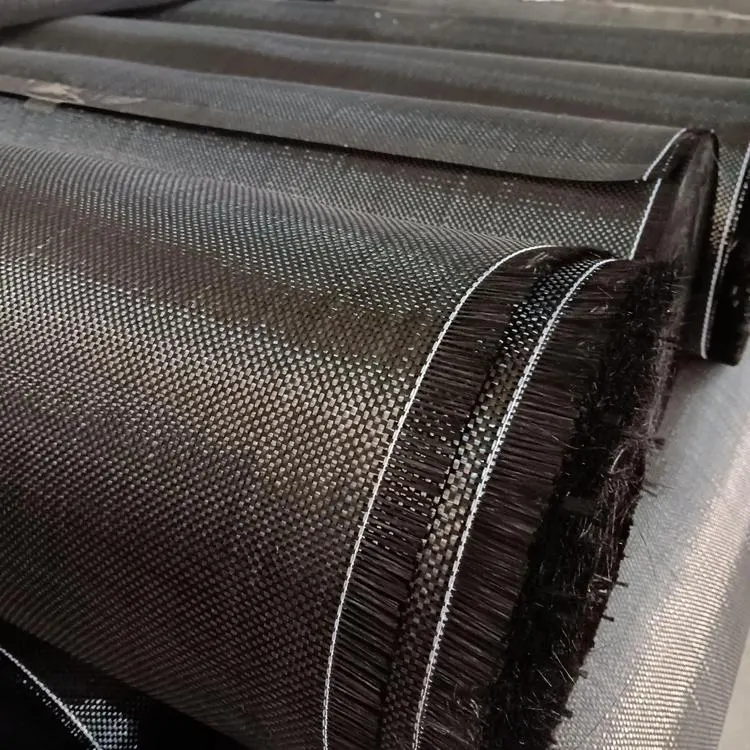

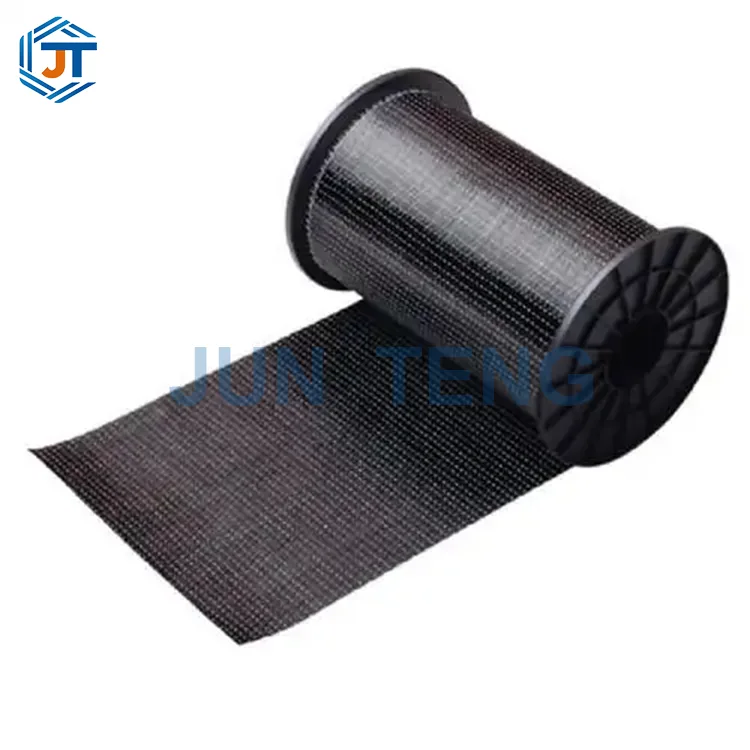

200g Bidirectional Carbon Fiber Reinforcement Fabric

Unlike generic industrial carbon fabrics, our 200g Bidirectional Carbon Fiber Reinforcement Fabric is specifically engineered for building repairs and lightweight structural reinforcement. It effectively addresses common industry pain points associated with traditional materials, such as excessive weight, cumbersome installation, poor adhesion to curved surfaces, and high costs.



Product Core Parameter Table

Parameter Item	Standard Specification	Procurement Value
Product Specification	200g/㎡Two-Way Plain Weave	Balanced bidirectional force bearing in warp and weft directions without stress blind spots, suitable for all-round light structural reinforcement
Finished Thickness	Approx. 0.11mm	Ultra-lightweight, no extra building load, no change to component cross-section, invisible and neat after construction
Tensile Strength	≥3400MPa	Far stronger than ordinary steel, excellent resistance to deformation and cracking, effectively eliminating potential structural hazards of old buildings
Flexibility & Fitting Performance	High flexibility with anti-loose edge locking design	Perfectly fits curved beams, columns and special-shaped surfaces without wrinkles or hollowing, featuring high construction tolerance
Applicable Working Conditions	Universal for normal temperature, humid, indoor and outdoor environments	Acid, alkali and aging resistant, adaptable for residential, factory and municipal renovation scenarios

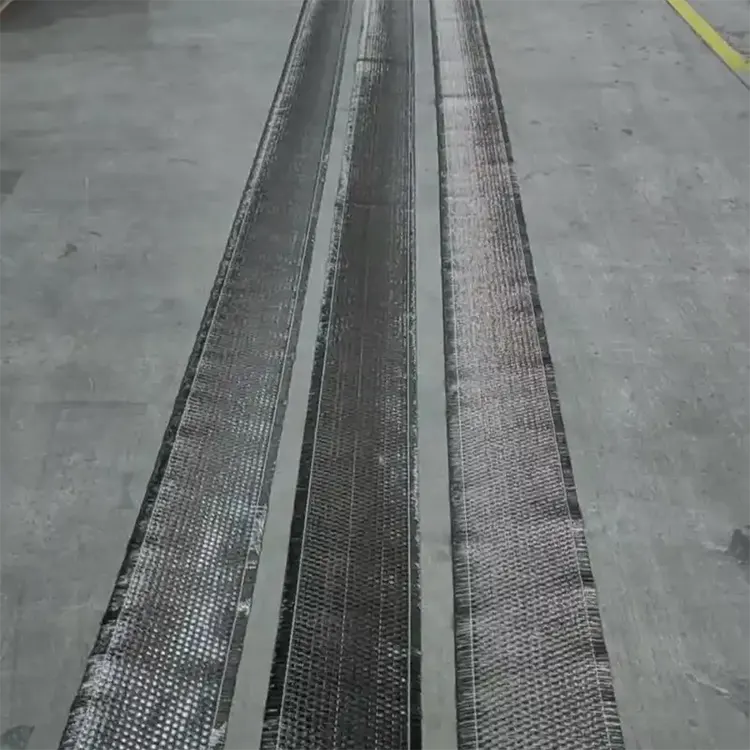

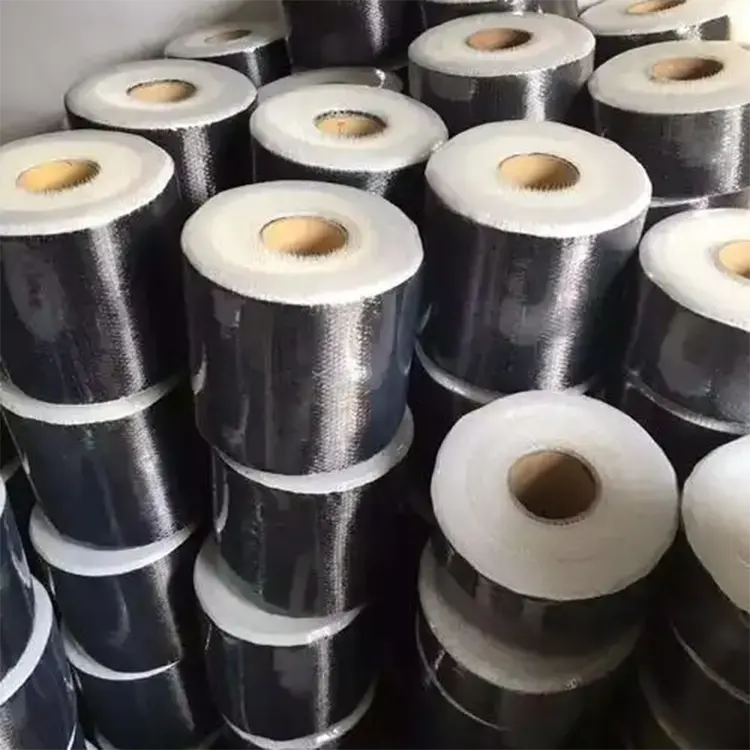

Supply Service	In-stock supply, custom slitting, personalized width customization	Support sample testing, large-scale engineering procurement and long-term price-locked stock preparation to meet diverse purchasing demands



Core advantages of differentiated products

1. Lightweight and flexible

Compared to 300g and 12K thick carbon cloth, the biggest core advantage of 200g bidirectional reinforcement cloth is its lightweight and flexibility. With an ultra-thin thickness of 0.11mm, it can tightly adhere to complex components such as curved beams and columns, circular columns, and irregular floor slabs. The paving is smooth and comfortable, eliminating problems such as hollowing, wrinkles, and warping. The construction is convenient and efficient, without the need for complex procedures. Single layer paving can meet the needs of lightweight reinforcement, greatly shorten the construction period, and adapt to the renovation and refined repair projects of old buildings.

2. Balanced force in both directions

Adopting precision bidirectional flat weaving and locking technology, the warp and weft carbon fibers are evenly and densely arranged, and the transverse and longitudinal tensile and shear properties are balanced, which is different from the limitations of unidirectional carbon cloth under single force. For multi-directional load-bearing components such as floor slabs, stairs, and walls, uniform reinforcement can be achieved in all directions, effectively avoiding secondary cracking and structural loosening caused by uneven local stress, and the reinforcement effect is more stable and safe.

3. High cost-effectiveness

For low load and high demand scenarios such as civil renovation, renovation of old residential areas, and lightweight reinforcement of factories, 200g bidirectional carbon cloth can completely replace high weight carbon cloth. While ensuring that the reinforcement meets the standards and passes the engineering acceptance smoothly, it significantly reduces material procurement costs and eliminates energy redundancy and waste. It is the most cost-effective option for small and medium-sized reinforcement projects.

4. Strict quality control

Implement four quality inspection standards throughout the process: purity testing of raw silk, inspection of weaving density, mechanical sampling of finished products, and re inspection of outgoing products to eliminate defects such as breakage, looseness, fuzzing, and deviation. Each batch of products can provide compliance testing reports and qualification documents, fully meeting the acceptance standards of municipal engineering, real estate enterprise repair, and bidding projects.



Real customer case studies

Case 1: Renovation and Reinforcement Project of Exhibition Hall at Guangzhou Pazhou International Convention and Exhibition Center

Part of the exhibition halls in the convention and exhibition center bear large exhibition loads for a long time, and there are slight cracks in the floor slabs and curved roofs of the exhibition halls. The original reinforcement plan will compress the floor height and affect the use of the exhibition halls. The project uses 200g Bidirectional Carbon Fiber Reinforcement Fabric, a bi-directional plain weave material that is flexible and adheres to curved surfaces. Thin layer bonding does not occupy indoor space. The construction was carried out at night without interrupting the preparation for the exhibition. After reinforcement, the bending resistance of the floor slab was greatly improved, and cracks were completely sealed. The special acceptance of the exhibition building was successfully passed, and the lightweight construction plan significantly shortened the overall construction period.

Case 2: Structural Renovation Project of Leshan Normal University Teaching Building

The old teaching building of the school has been in use for many years, with concrete carbonation in classroom floors, corridor beams and columns, and insufficient local bearing capacity. Campus construction needs to ensure that daily teaching is not disturbed. The project adopts 200g Bidirectional Carbon Fiber Reinforcement Fabric thin layer reinforcement, with a lightweight and easy to cut fabric surface, suitable for classroom irregular corner components. The construction is quiet and does not require the removal of existing decorations. After completion, the structural stiffness and seismic performance meet the standards, and the material weight hardly increases. The acceptance materials are complete, and the school will continue to purchase our carbon cloth in bulk for subsequent campus renovation projects.



Core application scenarios

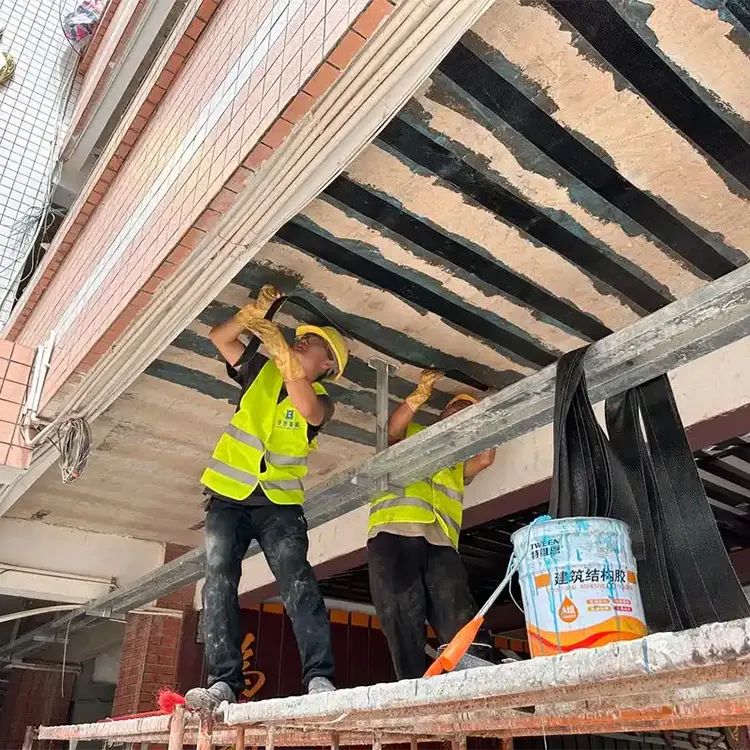

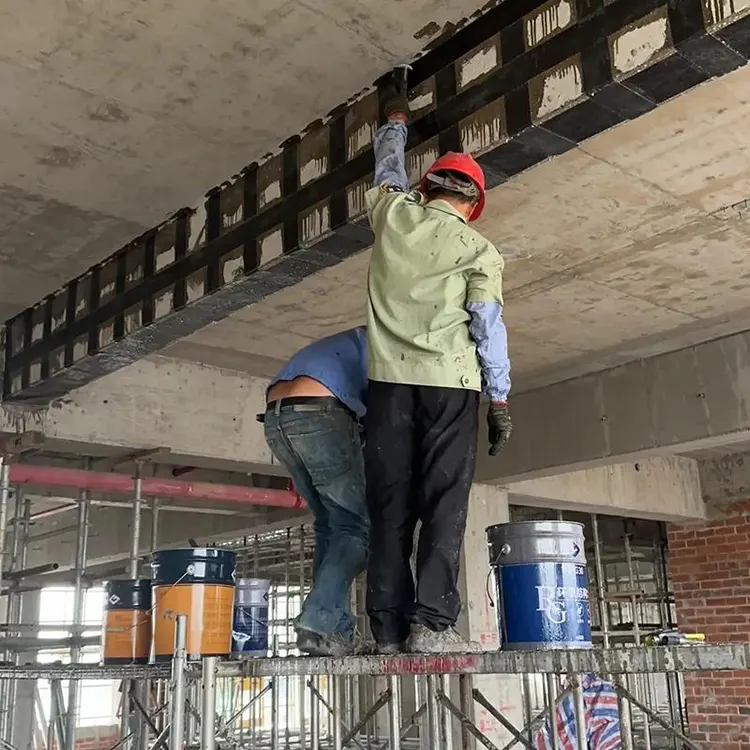

1. Civil building renovation: repair of cracks in old residential areas' floors, stairs, and balconies, mild reinforcement of beams and columns, seismic upgrade and renovation of old houses, lightweight and non-destructive to the original decoration and structure.
2. Industrial reinforcement of factory buildings: Enhance the bearing capacity of secondary beams and floor slabs in lightweight factory buildings, locally reinforce equipment, repair aging structures, and meet the needs of lightweight and low-cost reinforcement.

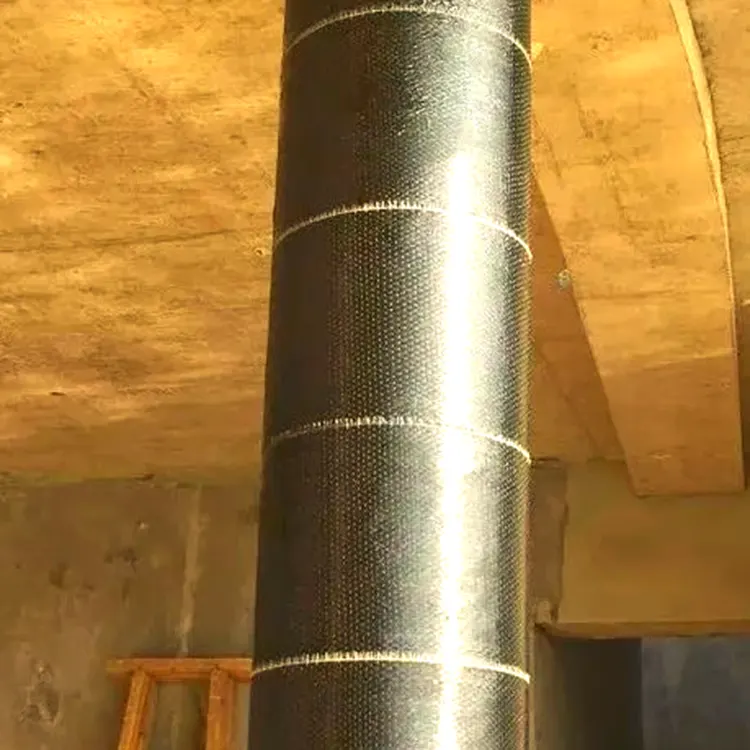

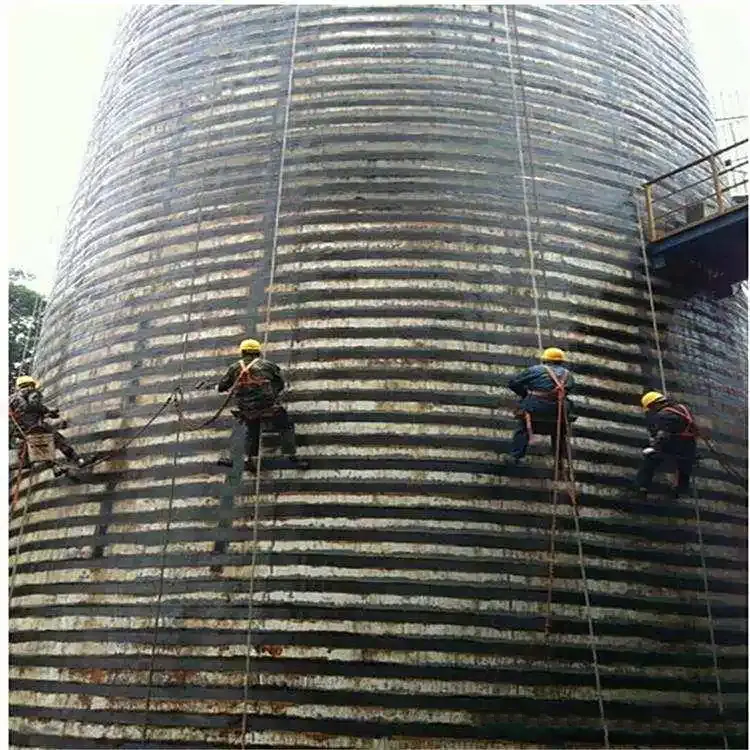

3. Reinforcement of irregular components: Complex structures such as curved beams and columns, circular columns, and curved walls are reinforced with high fit and uniform reinforcement without dead corners.
4. Mold and Lightweight Processing: Small fiberglass molds and civilian lightweight accessories are reinforced on the surface, with good wettability and smooth and beautiful molding.



Procurement Service Guarantee

Low priced 200g carbon cloth on the market often has problems such as sparse fiber bundles, mixed recycled fibers, uneven stress, and easy delamination and cracking, which can easily lead to project acceptance failure and later rework and repair. JUN TENG's 200g Bidirectional Carbon Fiber Reinforcement Fabric is woven entirely with brand new high-purity carbon fibers, free from adulteration or defective products. Each batch of products has stable performance and complete qualifications. Support free sample comparison, on-site selection guidance by technical personnel, customized cutting according to needs, same day delivery of spot goods, and batch purchase with tiered bottom price and long-term locked price stocking services.

If you need engineering quotations, qualification documents, construction plan guidance, or bulk procurement discounts, you can directly contact online customer service to quickly obtain one-on-one exclusive procurement solutions.



Why Choose Us?

With 18 years of deep experience in the carbon fiber reinforcement industry, JUN TENG specializes in the R&D and large-scale production of carbon fiber fabrics for structural and industrial reinforcement. Our flagship products are lightweight, highly adaptable, and cost-effective.

We hold ISO9001 quality system certification and possess qualifications for third-party mechanical performance testing and engineering project registration. We have a long track record of serving municipal repair projects, residential renovation schemes, private factory refurbishments, and export orders for lightweighting components, with over a thousand successfully completed projects. Thanks to our consistent quality and reliable implementation capabilities, we have earned the long-term trust of procurement professionals across the industry; our products have been proven over time to be professional, practical, and reliable.
